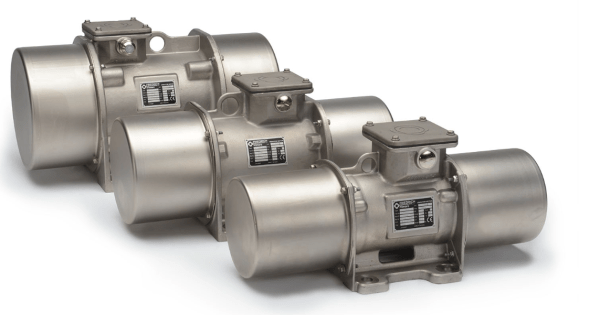

FRIEDRICH /VIMARC® Stainless Steel Engines RVS Types
FRIEDRICH/VIMARC® stainless steel motors are designed to meet the ever-increasing demands for hygiene, sterility and good cleaning options in the food and pharmaceutical industries.
The stator housings and terminal box covers of this series are cast from stainless steel die casting and hermetically sealed with deep stainless steel covers. Special cleaning holes in the stainless steel housing provide excellent cleaning capabilities on the underside of the housing.
The smooth surface of the engine - without an edge - does not cause the formation of embryos.
Otherwise, these engines meet the general requirements of standard FRIEDRICH engines.
General technical conditions
Power supply:Voltage from 115 V to 690 V is available in 50 Hz and 60 Hz.
Protection:IP 66
Thermal class:F (155 ° C) according to DIN EN 60034-1
Tropical isolation:standard
Electrical connection:Use a highly flexible cable for heavy mechanical loads. For example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:-20 to +40 ° C.
Special versions with cold steel up to -65 °C are available on request.
Operating mode:
Continuous operation (S1) and intermittent operation at 100% centrifugal force.
montage:
It can be mounted in any position without restrictions.
Type of code:
The type code is read as follows:
The first block number=operating torque in kgf
(Operating torque=2 x static torque)
This is followed by a hyphen followed by the pole number.
(4=1460 min-1, 6=980 min-1 (at a network frequency of 50 Hz)).
The size is indicated after the second hyphen.
