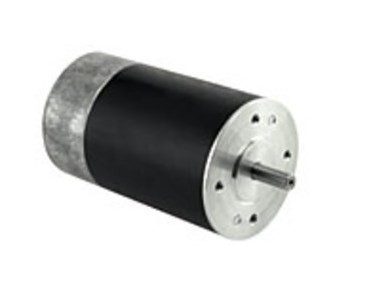

G545-00048701 Gear motor G545:Z67 100:1 24V n=3000ob/min IP54 K2
DC motor with permanent magnet G 5
- Connection: connection to a power source, battery, PWM controller or control amplifier, residual ripple of operating voltages max. 5%. Cable connection, additional connector
- Switching: Mechanical switching via a 12-element collector
- The magnetic system: 2-pole permanent magnet made of ferrite
- Life expectancy: 5000 hours, operation S1
- Insulation class: B, optional F
- Protection class: IP 40, optional IP 65
- Special version: design for short-term operation with higher power, additional voltages and speeds on request
- Options: special shafts, customer-oriented design
G 525
|
Rated voltage: |
(Volts) |
24 |
|
Rated power: |
(Tue) |
14 |
|
Rated speed: |
(Revolutions per minute) |
3000 |
|
Rated torque: |
(NCM) |
4,2 |
|
The torque: |
(NCM) |
13,5 |
G 545
|
Rated voltage: |
(Volts) |
24 |
|
Rated power: |
(Tue) |
26 |
|
Rated speed: |
(Revolutions per minute) |
3000 |
|
Rated torque: |
(NCM) |
8 |
|
The torque: |
(NCM) |
39 |
G 565
|
Rated voltage: |
(Volts) |
24 |
|
Rated power: |
(Tue) |
29 |
|
Rated speed: |
(Revolutions per minute) |
3000 |
|
Rated torque: |
(NCM) |
9 |
|
The torque: |
(NCM) |
43 |
Features
Power, kW:
0,03
Rotation speed, rpm
3000
Brand
Gefeg
