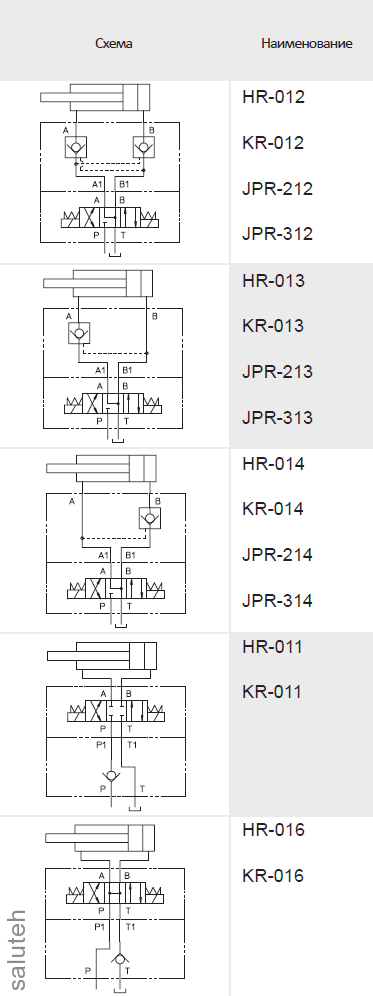

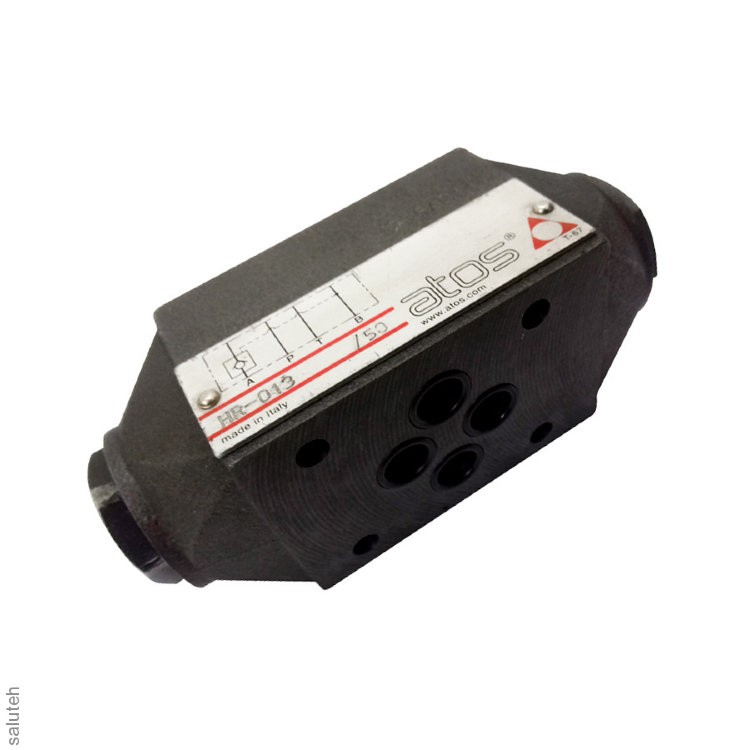

HR, KR - check valves, direct acting or hydraulic locks.
JPR - hydraulic locks.
Optional decompression versions are available for some KR models.
HR-0=ISO 4401 size 06: flow rate up to 60 l/min, pressure up to 350 bar.
KR-0=размер 10 по ISO 4401: расход до 120 л/мин, давление до 315 бар.
JPR-2=размер 16 по ISO 4401: расход до 200 л/мин, давление до 350 бар.
JPR-3=размер 25 по ISO 4401: расход до 300 л/мин, давление до 350 бар.
The valves are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic liquid having similar lubricating characteristics.
Max. flow rate l/min 200
Max. pressure 315
