Deep vibrator with flexible shaft (with cable) IV-75 (d. 28mm) 45/50

For comparison
To favorites
Vendor code:ИВ-75 (d. 28мм)
Deep vibrator with flexible shaft (with cable) IV-75 (d. 28mm) 45/50
Centrifugal force, kN
Power, kW:
Rotation speed, rpm
Brand
Pre-order
$6,73
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

The vibrating tip is a part of deep vibrators for construction work and is designed for compaction of concrete mixtures laid in small arrays, monolithic, medium reinforced building structures

The vibrating tip of vibrators of all types is a hermetically sealed housing, inside which there is a slider connected to the spindle by a hinge assembly. In the vibrating tip, the slider, planetarily rolling along the conical surface of the core (or sleeve), creates vibrational vibrations of the housing. To protect against dirt ingress, a special felt gasket installed on the spindle side is provided in the vibratory tip of the vibrators.

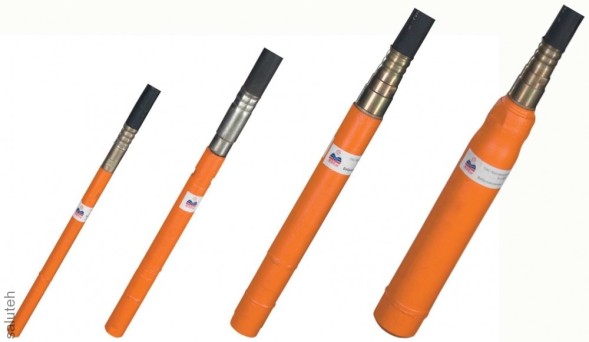

The following modifications of vibrating tips are available: diameter 28mm; 38mm; 51mm; 76mm.

parameters

D=28

(IV-75)

D=38

(IV-113)

D=51

(IV-117A)

D=76

(IV-116A)

Diameter of the working part of the vibrating tip, mm

28

38

51

76

The length of the working part of the vibrating tip, mm

415

415

410

430

Range of action, mm

180

205

300

430

Capacity, m3/h

2,0

2,7

6,6

12,3

Average time to failure according to TU, h

100

100

150

150

Compatible with flexible shafts

IV-75.03

EV-260.02, IV-75.03

EV-260

EV-260

Weight, kg

1,4

2,7

4,5

8,5
