Main application areas
- Raw water
- Water
- Water disposal
- Water treatment
- Water supply
- Disinfection
- Desalination of seawater
- Equipment for buildings
- Irrigation
- Sprinkling irrigation, irrigation
- Pressure increase
- Industry and technological process
- Industrial power plants
- Water distribution
- System solutions, rehabilitation
- Water transportation
- Chemistry
- Public power plants
- Energy industry

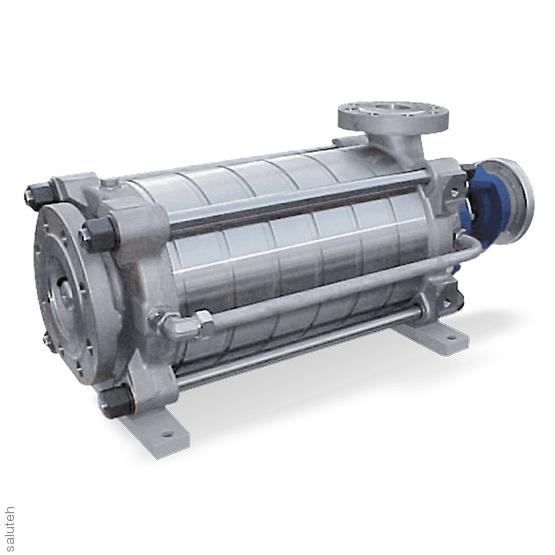

Multistage horizontal centrifugal pump of sectional type, with an elongated coupling (mounted on a base plate). Axial suction pipe. The pressure pipe can be rotated incrementally by 90°. Closed radial impellers, for applications in reverse osmosis and chilled water installations.
Overview of technical data
| Q (50Hz) | 10.0 – 850.0 (m³/h) |
| H (50Hz) | 65.0 – 1000.0 (m) |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine , internal combustion engine |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4469, 1.4517 |
| Type of installation | base plate |
| Type of lubricant | grease/oil lubrication |
| Max. permissible liquid temperature | 45 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN 100 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4462, 1.4501 |
| Suction characteristics | non-self-priming |
| Type of connection | the flange |
| Type of pressure housing | housing with an annular camera |
| Type of stage housing | the stage body without a guide device |
| Type of suction housing | housing with an annular camera |
| Housing material (according to EN standard) | 1.4410, 1.4469, 1.4517 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply |
| Housing material | duplex steel |
| Max. working pressure from the pressure sides | 100 (bar) |
| Max. drive power | 1000.00 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 4000 (1/min) |
Features
Brand
KSB
