Main application areas
- Nuclear power plants
- Primary circulation circuit
- Energy industry

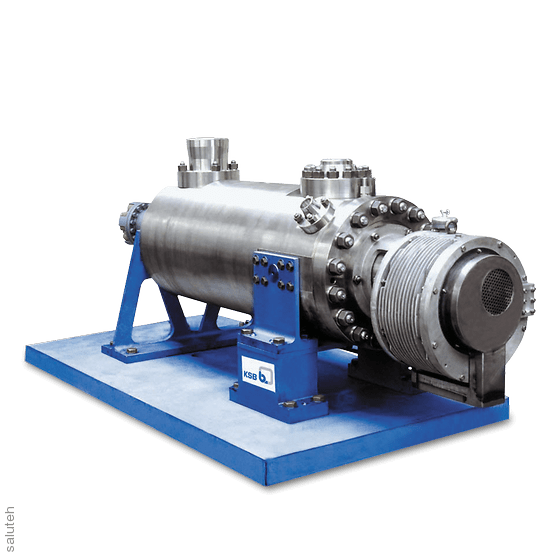

Horizontal reactor pump for high-pressure power systems and other applications.
Overview of technical data
| Q (50Hz) | 0.0 – 300.0 (m³/h) |
| H (50Hz) | 0.0 – 2100.0 (m) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of coupling | directly, the gearbox |
| Max. permissible liquid temperature | 180 (°C) |
| Standard | ASME SECT. III, KTA, RCC-M |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Energy industry |
| Max. working pressure from the pressure sides | 220 (bar) |
| Max. rotation speed | 8000 (1/min) |
Features
Brand
KSB
