Main application areas
- Nuclear power plants
- Secondary circulation circuits
- Boiler power supply
- Industrial power plants
- Energy industry

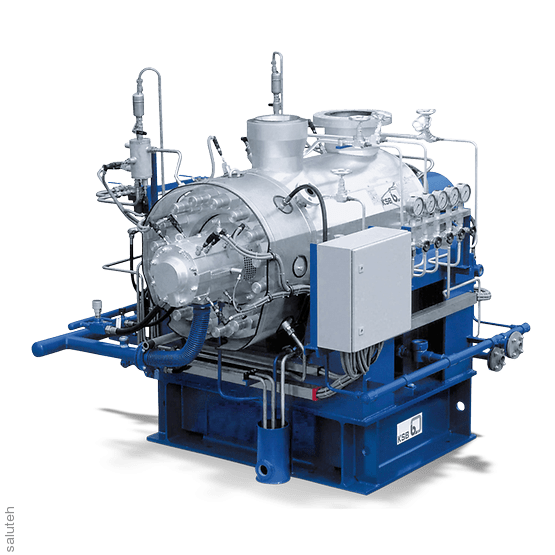

Horizontal high-pressure pump with a shell housing, with radial impellers, single-flow, multistage, with flanges/nozzles for welding according to DIN, APl 610 and ANSI. The axial displacement is balanced by a hydraulic balancing system on the pressure side, a double balancing cylinder. Scope of application: for pumping feed water and condensate in power plants and industrial installations, for obtaining pressurized water for presses, debarking and scale removal plants, snow cannons, etc.
Overview of technical data
| Q (50Hz) | 0.0 – 1278.0 (m³/h) |
| H (50Hz) | 0.0 – 4000.0 (m) |
| The outer case | yes |
| Type of bearing | slide underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine |
| Drive motor voltage | low voltage, high voltage |
| 1. type of impeller | single-threaded |
| Number of impeller inputs | single-threaded/double-threaded |
| Other types of impeller | closed /radial |
| Type of installation | base plate |
| Type of coupling | adjustable gear clutch, gear reducer, adjustable clutch, directly |
| Type of lubricant | pressure lubrication |
| Max. permissible liquid temperature | 200 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN160, PN250, PN320, PN400 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Suction characteristics | non-self-priming |
| Type of connection | flange, ends for welding |
| Type of pressure housing | housing with an annular camera |
| Type of stage housing | stage body with guide device |
| Type of suction housing | housing with an annular camera |
| eClass | 36410000, 36410101, 36410100 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Energy, Industry and technological processes |
| Housing material | carbon steel, chrome steel |
| Max. working pressure from the pressure sides | 400 (bar) |
| Max. working pressure from the suction side | 30 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 6750 (1/min) |
