Main application areas
- Boiler power supply
- Industrial power plants
- Energy industry

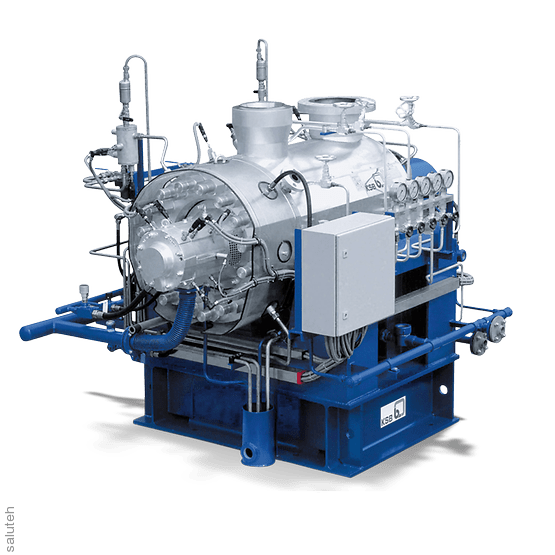

Horizontal multistage ultrahigh pressure pump with a shell housing with radial impellers, single-flow. Scope of application: for pumping feed water and condensate in power plants and industrial installations, for obtaining pressurized water for presses, debarking and scale removal plants, snow cannons, etc.
Overview of technical data
| Q (50Hz) | 0.0 – 3600.0 (m³/h) |
| H (50Hz) | 0.0 – 5300.0 (m) |
| The outer case | yes |
| Type of bearing | slide underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine |
| Drive motor voltage | low voltage, high voltage |
| 1. type of impeller | single-threaded/double-threaded |
| Number of impeller inputs | single-threaded/double-threaded |
| Other types of impeller | closed /radial |
| Type of installation | base plate |
| Type of coupling | adjustable gear clutch, gear reducer, adjustable clutch, directly |
| Type of lubricant | pressure lubrication |
| Max. permissible liquid temperature | 210 (°C) |
| The position of the nozzle | variable |
| Installation of the unit | "dry" installation |
| Suction characteristics | non-self-priming |
| Type of connection | flange, ends for welding |
| Type of pressure housing | housing with an annular chamber /end spiral |
| Type of stage housing | stage body with guide device |
| Type of suction housing | housing with an annular camera |
| eClass | 36410101, 36410000, 36410100, 36410104 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal, self-aligning seal |
| Main application areas | Energy, Industry and technological processes |
| Housing material | chrome steel, carbon steel |
| Max. working pressure from the pressure sides | 560 (bar) |
| Max. working pressure from the suction side | 40 (bar) |
| Max. drive power | 40000.00 (kW) |
| Type of installation | stationary |
Features
Brand
KSB
