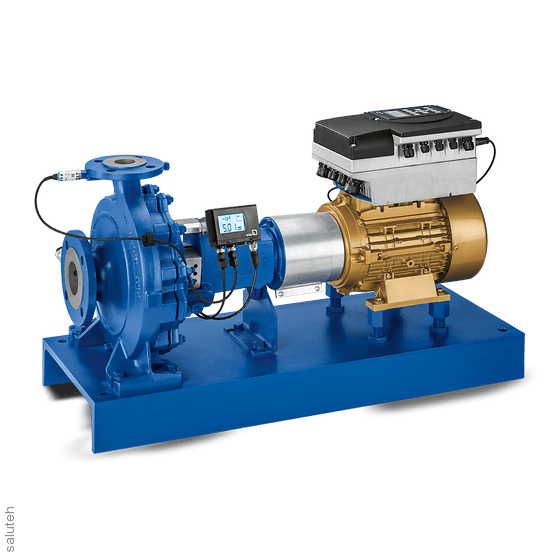

Horizontal single-stage pump with a spiral body, with an elongated coupling (mounted on a base plate), in process design, rated performance and basic dimensions according to EN 733. Replaceable shaft bushings /protective shaft bushings in the shaft seal area and wear-resistant slot rings of the impeller. Applications: water supply, irrigation and sprinkling, drainage, heating, air conditioning and fire extinguishing systems, pumping of drinking water, process water, hot water, cooling water, swimming pool water, seawater, fire extinguishing water, brackish water, condensate, salt solutions, oils and detergents. Code: EN.
Overview of technical data
| Q (50Hz) | 1.5 – 602.0 (m³/h) |
| H (50Hz) | 3.0 – 102.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | IP 55 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408, CC 480 K-GS, GJL-250, GJS-400-18-LT, JL 1040, JS 1025 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 110 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | 16 BAR |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Standard | DIN, DIN /ANSI |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed, radial, multi-channel impeller, closed/radial |
| Type of connection | the flange |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | 014408, 01L-250, 01S-400-18-LT, 1.4408, CC 480 K-GS, GJL-250, GJS-400-18-LT, JL 1040, JS 1025 |
| eClass | 00000000, 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | stuffing box, mechanical seal |
| Main application areas | Industry and technological processes, Water supply, Wastewater, Energy, Building engineering equipment, Oil /Gas |
| Housing material | grey cast iron, chrome-nickel steel, steel casting, stainless steel casting, spherical graphite cast iron, bronze |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 4400 (1/min) |
Features
Brand
KSB
