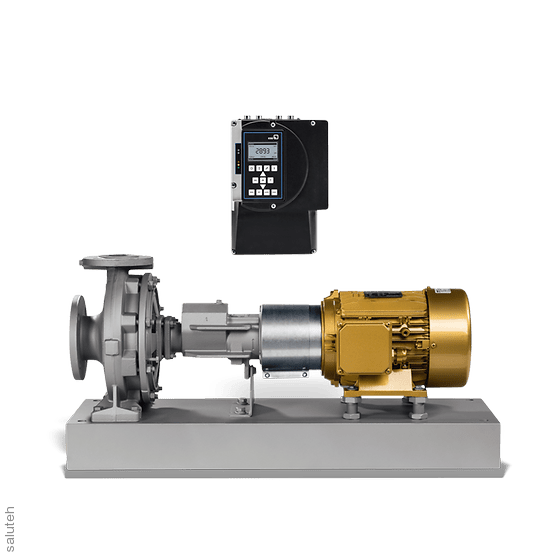

Horizontal single-stage pump with spiral casing (standard sizes 125-500/2 - two-stage), in process design, with replaceable wear-resistant slot rings. In heat transfer installations for pumping a coolant or for hot water circulation.
Overview of technical data
| Q (50Hz) | 50.0 – 2280.0 (m³/h) |
| H (50Hz) | 12.0 – 90.0 (m) |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL1040, GJL-250, 1.4408 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 350 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4057.05 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | GJS-400-18-LT, JS1025 |
| eClass | 36410100, 36410000, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes |
| Housing material | cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 1750 (min) |
Features
Brand
KSB
