Main application areas
- Raw water
- Biofuels
- Water
- Water disposal
- Water treatment
- Water supply
- Urban wastewater
- Desalination of seawater
- Equipment for buildings
- Processing of suspended solids
- Irrigation
- Sprinkling irrigation, irrigation
- Heating /Air conditioning
- Cooling water and condensate
- Pressure increase
- Food products
- Industry and technological process
- Industrial effluents
- Industrial power plants
- Water distribution
- System solutions, rehabilitation
- Special technologies
- Steel
- Waste water
- Heat carriers, cooling circuits
- Types of orders
- Water transportation
- Chemistry
- Public power plants
- Energy industry
- heating /air conditioning /ventilation

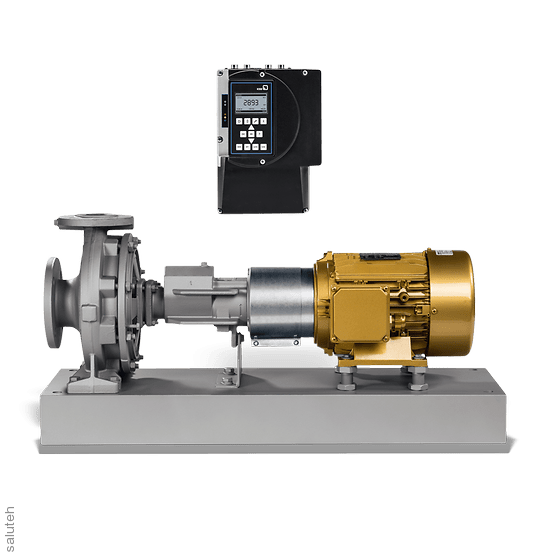

Horizontal single-stage pump with a spiral body, with an elongated coupling (mounted on a base plate), in process design, rated performance and basic dimensions according to EN 733. Replaceable shaft bushings /protective shaft bushings in the shaft seal area and wear-resistant slot rings of the impeller. Applications: water supply, irrigation and sprinkling, drainage, heating, air conditioning and fire extinguishing systems, pumping of drinking water, process water, hot water, cooling water, swimming pool water, seawater, fire extinguishing water, brackish water, condensate, salt solutions, oils and detergents. Code: EN.
Overview of technical data
| Q (50Hz) | 1.5 – 765.0 (m³/h) |
| H (50Hz) | 2.0 – 102.0 (m) |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | IP55 |
| Explosion protection | IP55 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL 1040 /A48CL35 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 350 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021 + QTHRC55 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed/radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | JS 1030 /A536 GR 60-40-18 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Energy, Building engineering equipment, Oil /Gas |
| Housing material | cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 16 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
