Main application areas
- Mining
- Urban wastewater
- Processing of suspended solids
- Food products
- Industry and technological process
- Industrial effluents
- Process
- Waste water
- Types of orders

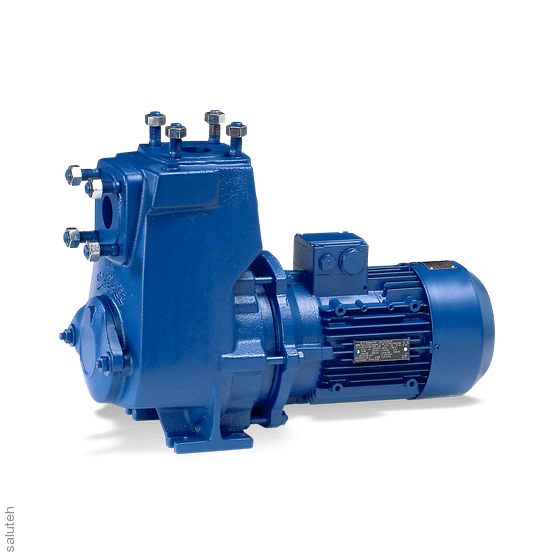

Horizontal self-priming pump with a spiral body, single-stage, with an open multi-channel impeller, in monoblock design with a common pump and motor shaft (B) or rigidly connected shafts. Scope of application: for pumping clean, contaminated or aggressive liquids without abrasive and solid components. Code: EP.
Overview of technical data
| Q (50Hz) | 4.0 – 150.0 (m³/h) |
| H (50Hz) | 3.5 – 100.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive | IEC standard motor, electric motor |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408, JL 1040 |
| Type of installation | block |
| Type of coupling | directly |
| Type of lubricant | grease/oil lubrication |
| Max. permissible liquid temperature | 90 (°C) |
| The absence of silicon is guaranteed | yes |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571, C45+N |
| Suction characteristics | self-priming |
| Acceptable for drinking water | yes |
| Housing type | spiral body |
| Type of impeller | open, multi-channel impeller |
| Type of connection | thread, flange |
| Housing material (according to EN standard) | JL 1040, 1.4408 |
| Max. free passage | 10 (mm) |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | wastewater, Industry and technological processes, Water supply, Building engineering equipment |
| Housing material | stainless steel casting, grey cast iron |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 30 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
