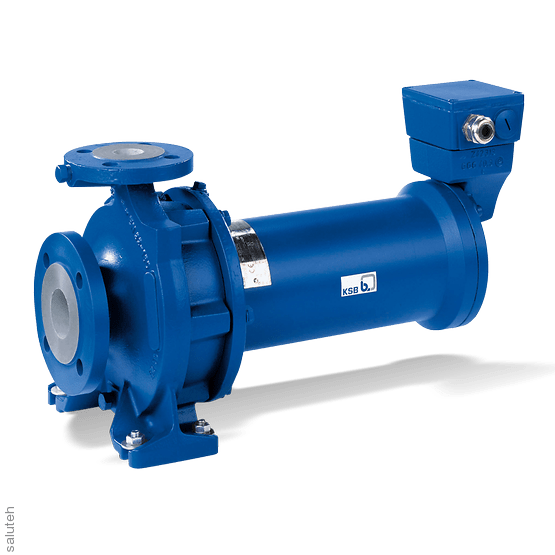

Horizontal /vertical hermetic pump with a spiral casing, in a process design, with a fully enclosed sleeve motor, with reduced noise, with a radial impeller, single-stage, single-flow. With connecting body dimensions according to EN 733. Scope of application: for pumping aggressive, flammable, toxic, easily volatilized or expensive liquids in the chemical, petrochemical industry, in environmental technologies and other industries. Code: ESO.
Overview of technical data
| Q (50Hz) | 3.0 – 250.0 (m³/h) |
| H (50Hz) | 9.0 – 100.0 (m) |
| Type of bearing | slide underpin |
| Separation of the body | transverse (radial) |
| Drive | IEC standard engine |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 220/400/690 V, 3~ |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL1040, JS1025 |
| Type of installation | block |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 140 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 16 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | multi-channel impeller, closed, closed/radial, radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | JS1025, JL1040 |
| eClass | 36410100, 36410101, 36410000 |
| Installation position | horizontal or vertical |
| Type of shaft seal | submersible electric motor with protected stator |
| Main application areas | Industry and technological processes |
| Housing material | grey cast iron, cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 16 (bar) |
| Max. drive power | 18 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
