Main application areas
- Mining
- General methods
- Boiler power supply
- Industry and technological process
- Industrial power plants
- Process
- Snow Cannons
- Steel
- Public power plants
- Energy industry

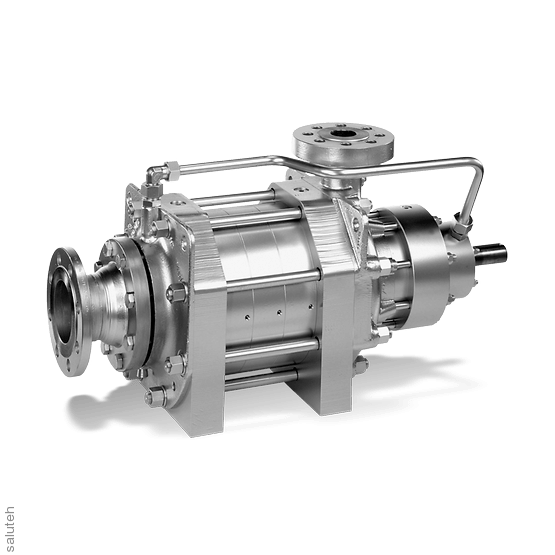

Horizontal sectional type pump with a longitudinal housing connector, with radial impellers, single- or double-flow, multistage. Scope of application: for pumping feedwater and in public power plants.
Overview of technical data
| Q (50Hz) | 8.0 – 274.0 (m³/h) |
| H (50Hz) | 200.0 – 1400.0 (m) |
| Type of bearing | slide underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine |
| Drive motor voltage | low voltage, high voltage |
| 1. type of impeller | closed /radial |
| Number of impeller inputs | single-threaded |
| Other types of impeller | closed /radial |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 160 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN 64, PN 100, PN 160 |
| Installation of the unit | "dry" installation |
| Suction characteristics | non-self-priming |
| Type of connection | the flange |
| Type of pressure housing | housing with an annular camera |
| Type of stage housing | stage body with guide device |
| Type of suction housing | housing with an annular camera |
| UNSPSC classification | 4015150300 |
| eClass | 36410101, 36410000, 36410100 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Energy |
| Housing material | chrome steel, steel casting |
| Max. working pressure from the pressure sides | 140 (bar) |
| Max. working pressure from the suction side | 7 (bar) |
| Max. drive power | 1200 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3600 (1/min) |
Features
Brand
KSB
