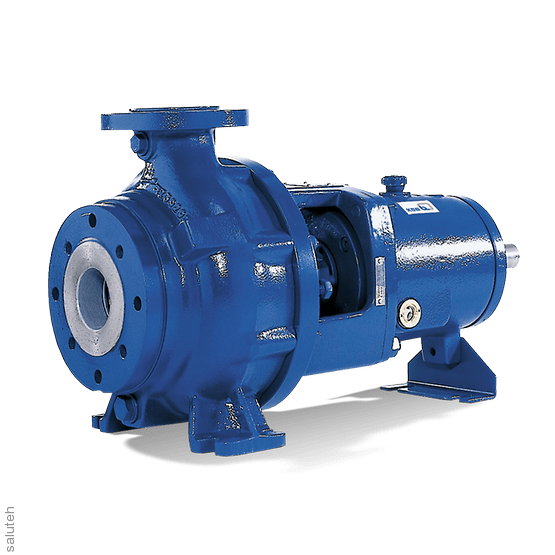

"Horizontal pump with a spiral body having a transverse connector, in monoblock or process design, single-stage,
single-threaded with a variety of impeller geometries: non-clogging, open multi-channel and
a free-swirl impeller. Scope of application: for pumping treated wastewater, contaminated water and suspensions of all types without fibrous impurities and pulp up to 5% dry residue.
Overview of technical data
| Q (50Hz) | 4.0 – 15000.0 (m³/h) |
| H (50Hz) | 1.0 – 140.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage, high voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | CERAMIKPOLYSIC, ERN, NORICHROM, NORICLOR, NORIDUR 1.4593, NORIHARD |
| Type of installation | base plate |
| Type of coupling | counter drive/belt drive, direct drive, gearbox |
| Type of lubricant | oil lubrication |
| Max. permissible liquid temperature | 280 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN10 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | C45+N |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | free-vortex impeller, closed, radial, multi-channel impeller, open |
| Type of connection | the flange |
| Housing material (according to EN standard) | CERAMIKPOLYSIC, JL1040, NORICLOR, NORICROM, NORIDUR 1.4593, NORIHARD |
| eClass | 36410101, 36410000, 36410100, 36410103 |
| Max. free passage | 250 (mm) |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal, stuffing box |
| Main application areas | Industry and technological processes, Water supply, Wastewater, Energy, Mining /Dredging |
| Housing material | special casting, grey cast iron, duplex steel |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 1500 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
