Main application areas
- Petrochemical industry
- Oil /Gas
- Boiler power supply
- Industry and technological process
- Industrial power plants
- Energy industry
Construction
Ultra-high pressure pumps
Description

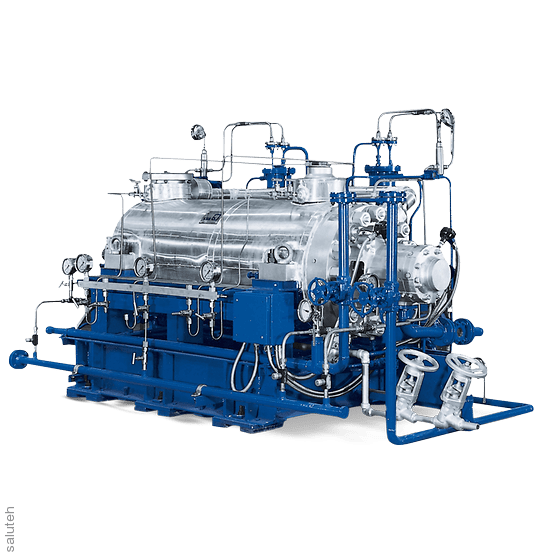

A horizontal high-pressure pump with a housing having
shell, with radial impellers, single and double-threaded, multi-stage, with flanges/pipes for welding according to DIN, API 610 and ANSI.
Scope of application
in oil refineries, in the petrochemical industry and in steam production.
Overview of technical data
| Q (50Hz) | 0.0 – 1450.0 (m³/h) |
| H (50Hz) | 0.0 – 4000.0 (m) |
| The outer case | yes |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine |
| Number of impeller inputs | single-threaded/double-threaded |
| Other types of impeller | closed /radial |
| Type of installation | base plate |
| Type of coupling | directly, gearbox, adjustable clutch, adjustable gearbox clutch |
| Type of lubricant | oil lubrication/pressure lubrication |
| Max. permissible liquid temperature | 400 (°C) |
| The position of the nozzle | variable |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Suction characteristics | non-self-priming |
| Type of connection | flange, ends for welding |
| Type of pressure housing | housing with an annular camera |
| Type of stage housing | stage body with guide device |
| Type of suction housing | housing with an annular camera |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Energy, Oil /Gas |
| Housing material | duplex steel, carbon steel, chrome steel |
| Max. working pressure from the pressure sides | 400 (bar) |
| Max. working pressure from the suction side | 30 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 7000 (1/min) |
Features
Brand
KSB
