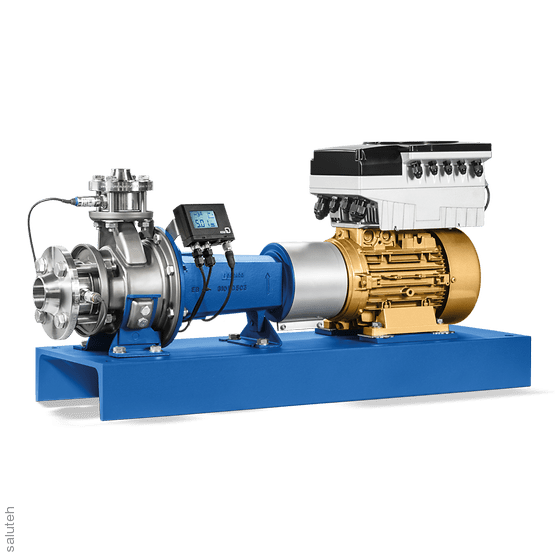

Horizontal single-stage pump in an annular housing, with a spacer coupling, in a process design, made of chrome-nickel-molybdenum steel, rated capacity and basic dimensions of which comply with the EN 733 standard, with replaceable slot rings of the housing. Scope of application: for water supply, sprinkling, watering, drainage, heating, air conditioning and fire extinguishing installations, pumping of drinking water, household water, hot and cold water, swimming pool water, fire extinguishing water, condensate, oils and detergents. Code: EC NC.
Overview of technical data
| Q (50Hz) | 2.0 – 250.0 (m³/h) |
| H (50Hz) | 2.0 – 105.0 (m) |
| Type of bearing | ball bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Explosion protection | IP 55 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | CRNIMO STEEL 1.4571 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 110 (°C) |
| The absence of silicon is guaranteed | yes |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 12 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4571 |
| Standard | DIN /ANSI |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Housing type | housing with an annular camera |
| Type of impeller | multi-channel impeller, closed, closed/radial, radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | CRNIMO STEEL 1.4571 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Building engineering equipment, Water supply, Energy, Industry and technological processes |
| Housing material | chrome-nickel-molybdenum steel |
| Max. working pressure from the pressure sides | 12 (bar) |
| Max. drive power | 45 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
