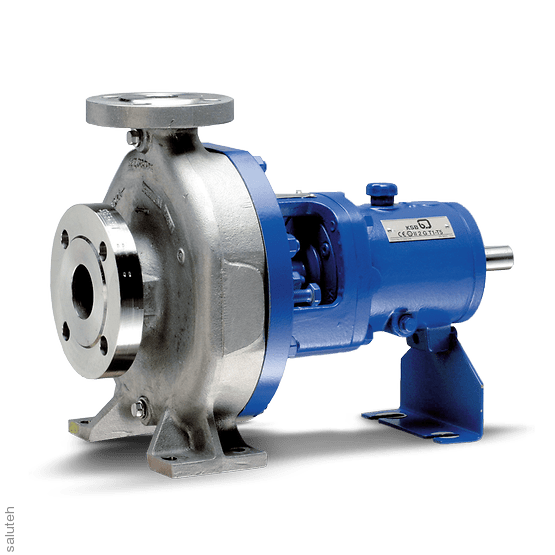

Horizontal centrifugal pump with spiral body,
transverse connector, in process design, according to EN 22 858 /ISO 2858 /ISO 5199, with radial impeller, single-threaded, single-stage. The CPK variant with a shaft reinforced at the shaft seal site, reinforced bearings, a "wet" shaft option and/or with a conical sealing chamber is possible. Scope of application: for pumping aggressive liquids in the chemical and petrochemical industries.
Overview of technical data
| Q (50Hz) | 1.0 – 4800.0 (m³/h) |
| H (50Hz) | 2.0 – 275.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Heated | yes |
| Impeller material (according to E standard | NORIDUR 1.4593, JL 1040, 1.4408 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | oil lubrication |
| Max. permissible liquid temperature | 400 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 25 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4462, 1.5680, C 45+N, 1.7709 |
| Standard | ISO 5199, ISO 2858, EN 22858 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed, radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | NORIDUR 1.4593, 1.4408, JS 1025, GP240GH+N |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Energy, Industry and technological processes |
| Housing material | stainless steel casting, Ni-resist, duplex steel casting, steel casting, cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 25 (bar) |
| Max. drive power | 3200 (kW) |
| Type of installation | 00 |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
