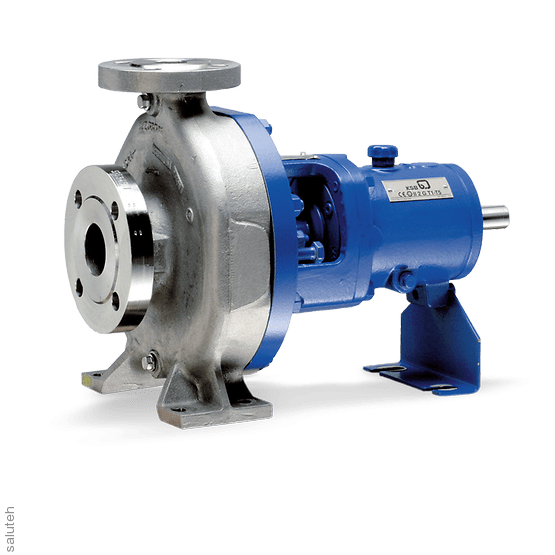

A horizontal pump with a spiral body having a bottom-
river connector, in process design, with radial impeller,
single-threaded, single-stage, according to EN 22 858 /ISO 2858 /ISO 5199, with variations-
volume of the "wet" shaft, with a conical seal chamber. Execution according to ATEX.
Scope of application
for pumping aggressive liquids in chemical-
in the chemical and petrochemical industries, as well as in oil refining plants.
Overview of technical data
| Q (50Hz) | 1.0 – 4800.0 (m³/h) |
| H (50Hz) | 2.0 – 275.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Heated | yes |
| Impeller material (according to E standard | 1.4408, JL 1040, NORIDUR 1.4593 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | oil lubrication |
| Max. permissible liquid temperature | 400 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 25 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4462, 1.5680, 1.7709, C 45+N |
| Standard | EN 22858, ISO 2858, ISO 5199 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed, radial |
| Type of connection | the flange |
| Housing material (according to EN standard) | 1.4408, GP240GH+N, JS 1025, NORIDUR 1.4593 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Industry and technological processes, Energy |
| Housing material | steel casting, stainless steel casting, duplex steel casting, spherical graphite cast iron, Ni-resist |
| Max. working pressure from the pressure sides | 25 (bar) |
| Max. drive power | 3200 (kW) |
| Max. rotation speed | 3500 (1/min) |
Features
Brand
KSB
