Main application areas
- Cooling water and condensate
- Steam, hot water, heat from the SCT
- Steam circuits
- Boiler power supply
- Industry and technological process
- Industrial power plants
- Special technologies
- Heat carriers, cooling circuits
- Boiler water circulation
- Public power plants
- Energy industry

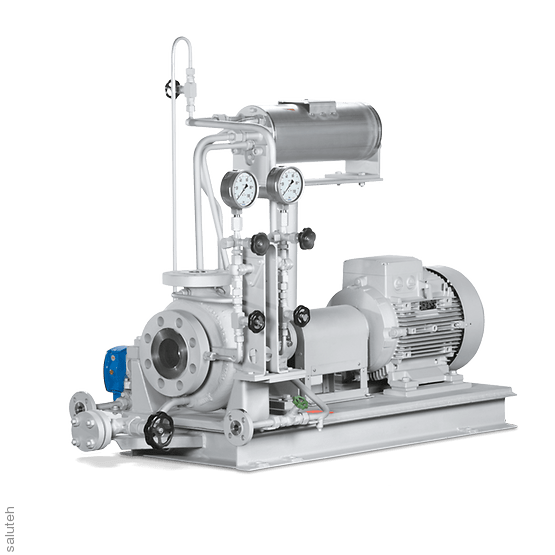

Horizontal centrifugal pump with spiral body,
having a transverse connector, in a process design, according to EN 22 858 /ISO 2858 /ISO 5199, with support legs located at the level of the pump axis, with a radial impeller, single-flow, single-stage. Certification according to the standard range by the technical supervision authority TÜV Bavaria is possible/Saxony in accordance with the Specifications for Pressure vessels (TRD). Scope of application: for pumping hot water in installations for heating water under high pressure and for use as a feed or circulation pump.
Overview of technical data
| Q (50Hz) | 2.5 – 1900.0 (m³/h) |
| H (50Hz) | 4.0 – 225.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JS 1025, 1.4408, JL 1040 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | oil lubrication |
| Max. permissible liquid temperature | 320 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 100 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.7709 VS |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | radial, multi-channel impeller, closed |
| Type of connection | the flange |
| Housing material (according to EN standard) | GP240GH+N, 1.7706, 1.4931 |
| eClass | 36410101, 36410000, 36410100 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Energy, Industry and technological processes |
| Housing material | stainless steel casting, steel casting |
| Max. working pressure from the pressure sides | 110 (bar) |
| Max. drive power | 490 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3500 (1/min) |
