Main application areas
- Auxiliary Systems
- Nuclear power plants
- Water treatment
- Cooling water and condensate
- Steam, hot water, heat from the SCT
- Boiler power supply
- Industry and technological process
- Industrial power plants
- Special technologies
- Heat from a centralized heating system
- Public power plants
- Energy industry

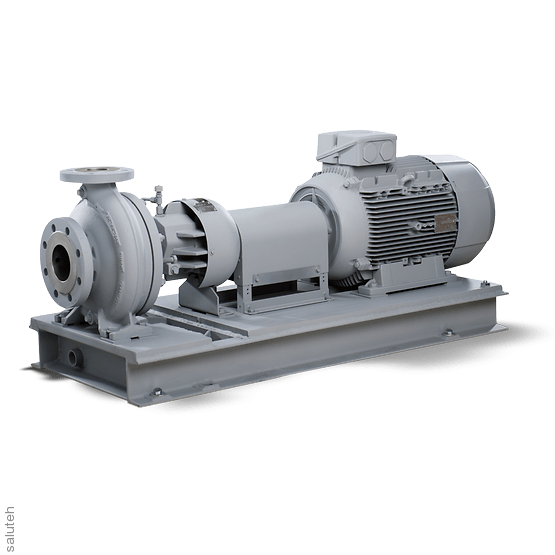

A horizontal centrifugal pump with a spiral body having
transverse connector, in process design, according to ISO 2858 /ISO 5199, with radial impeller, single-threaded, single-stage. It is equipped with a thermal barrier, a sealing chamber cooled by air due to an integrated fan; there is no need for external cooling. Scope of application: for pumping hot water and oil coolant in pipeline or tank systems, in particular for medium and large water heating installations, boilers with forced circulation, district heating, etc.
Overview of technical data
| Q (50Hz) | 1.0 – 1400.0 (m³/h) |
| H (50Hz) | 3.5 – 233.0 (m) |
| Type of bearing | rolling bearing and sliding underpin |
| Separation of the body | transverse (radial) |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4408, EN-GJL-250 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/grease with a pumped medium |
| Max. permissible liquid temperature | 400 (°C) |
| The position of the nozzle | mechanical suction |
| Maximum operating pressure | PN 40 |
| Process execution | yes |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021+QT800 |
| Suction characteristics | non-self-priming |
| Housing type | spiral body |
| Type of impeller | closed, radial |
| Type of connection | the flange |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | 1.7706, GP240G+N |
| eClass | 36410101, 36410000, 36410100 |
| Installation position | horizontal |
| Main application areas | Industry and technological processes, Energy |
| Housing material | steel casting |
| Max. working pressure from the pressure sides | 40 (bar) |
| Max. drive power | 500 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 3600 (1/min) |
Features
Brand
KSB
