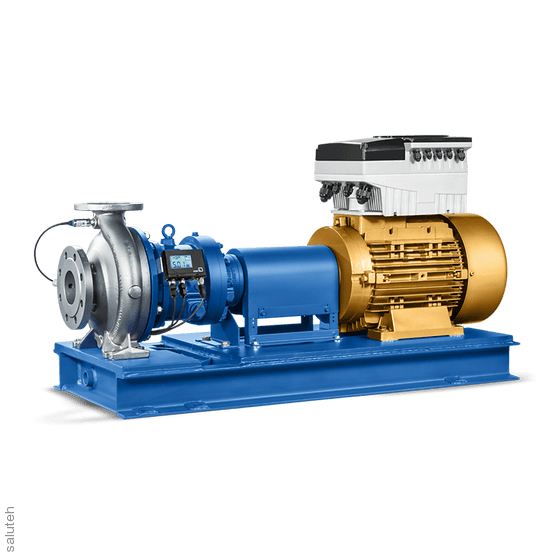

Magnochem Horizontal Centrifugal Pump

Brand:KSB
For comparison
To favorites
Vendor code:Magnochem
Magnochem Horizontal Centrifugal Pump
Brand
Pre-order
$0
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

Main application areas

  • Biofuels
  • Water treatment
  • Petrochemical industry
  • Oil /Gas
  • Cooling water and condensate
  • Food products
  • Industry and technological process
  • Industrial power plants
  • Sugar
  • Special technologies
  • Heat carriers, cooling circuits
  • Pipelines and reservoirs
  • Chemistry
  • Energy industry

"Horizontal centrifugal pump with spiral body,
having a transverse connector, in a process design, according to ISO 2858 /ISO 5199, with a magnetic coupling, with a radial impeller, single-threaded, single-stage, without shaft seal. Scope of application: for pumping aggressive, toxic, explosive, expensive, flammable, fetid or harmful liquids in the chemical, petrochemical and general industries. Code: MAC.

Overview of technical data

Q (50Hz) 1.0 – 1400.0 (m³/h)
H (50Hz) 3.5 – 236.0 (m)
Type of bearing ball bearing and sliding underpin
Separation of the body transverse (radial)
Drive motor frequency 50 Hz /60 Hz
Type of drive electric motor
Drive motor voltage low voltage
Number of impeller inputs single-threaded
Heated yes
Impeller material (according to E standard JS 1025, JL 1040, NORIDUR 1.4593, 1.4408
Type of installation base plate
Type of coupling directly
Type of lubricant lubrication of the pumped medium
Max. permissible liquid temperature 300 (°C)
The position of the nozzle mechanical suction
Maximum operating pressure PN 40
Process execution yes
Installation of the unit "dry" installation
Shaft material (according to EN standard) 1.4313+QT780, 1.4462
Suction characteristics non-self-priming
Housing type spiral body
Type of impeller multi-channel impeller, closed, closed/radial, radial
Type of connection the flange
Housing material (according to EN standard) 1.4408, 1.7709, GP240GH+N, NORIDUR 1.4593
eClass 36410101, 36410100, 36410000
Installation position horizontal
Type of shaft seal magnetic coupling
Main application areas Industry and technological processes, Energy
Housing material special KSB material, steel casting, stainless steel casting
Max. working pressure from the pressure sides 40 (bar)
Max. drive power 220 (kW)
Type of installation stationary
Max. rotation speed 3500 (1/min)
