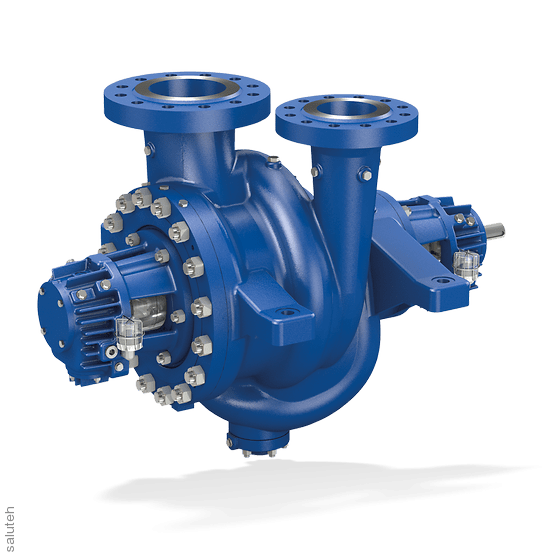

Horizontal Centrifugal Pump RPHb

Brand:KSB
For comparison
To favorites
Vendor code:RPHb
Horizontal Centrifugal Pump RPHb
Brand
Pre-order
$0
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

Main application areas

  • Oil refinery
  • Petrochemical industry
  • Oil /Gas
  • Industry and technological process
  • Pipelines and reservoirs

Horizontal centrifugal pump with spiral body,
having a transverse connector, in a process design according to API 610 or VDMA 9905, class A requirement (for heavy duty operation), with oppositely positioned radial impellers, single-threaded, single-stage, with support legs located at the level of the pump axis. Scope of application: pumping of various petroleum products, primarily in oil refineries, as well as in the petrochemical and chemical industries.

Overview of technical data

Q (50Hz) 0.0 – 875.0 (m³/h)
H (50Hz) 0.0 – 650.0 (m)
Type of bearing rolling bearing
Separation of the body transverse (radial)
Drive motor frequency 50 Hz /60 Hz
Number of impeller inputs single-threaded
Heated yes
Type of installation base plate
Type of coupling directly
Type of lubricant oil lubrication
Max. permissible liquid temperature 450 (°C)
The position of the nozzle up-up
Maximum operating pressure PN 100, ASME 600
Installation of the unit "dry" installation
Suction characteristics non-self-priming
Housing type spiral body
Type of impeller closed, radial, multi-channel impeller
Type of connection the flange
eClass 36410000, 36410100, 36410101
Installation position horizontal
Type of shaft seal mechanical seal
Main application areas Industry and technological processes, Oil /Gas
Max. working pressure from the pressure sides 100 (bar)
Type of installation stationary
Max. rotation speed 3500 (1/min)
