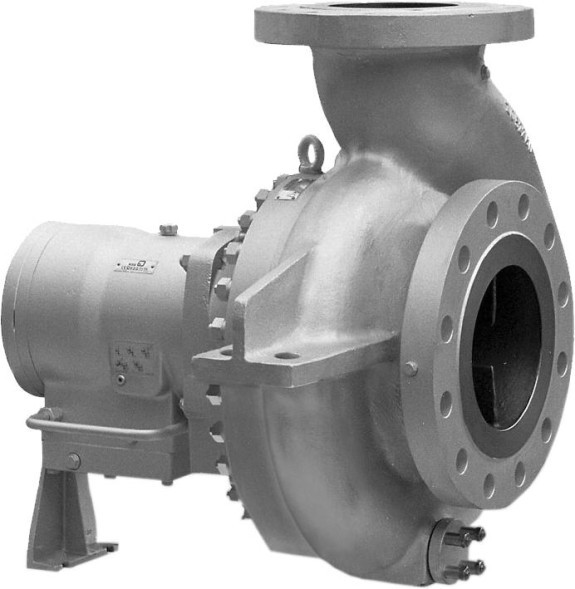

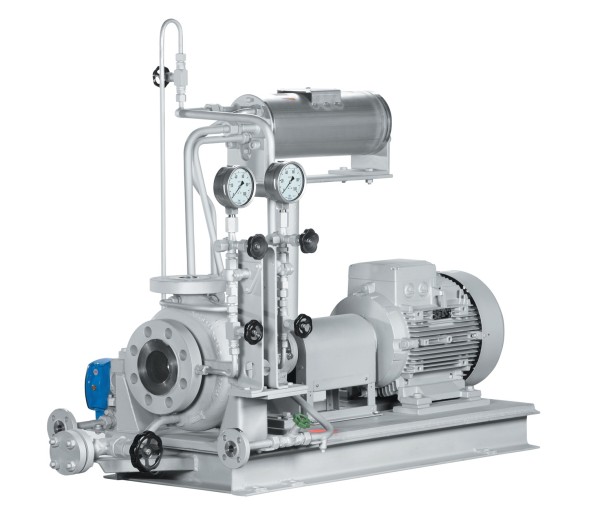

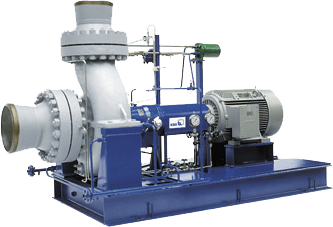

Horizontal centrifugal pumps for hot water HPH

Horizontal centrifugal pump with a spiral body having a transverse connector, in a process design, according to EN 22 858 /ISO 2858 /ISO 5199, with support legs located at the level of the pump axis, with a radial impeller, single-flow, single-stage.

Certification according to the standard range by the technical supervision authority in accordance with the Technical Specifications for pressure vessels (TRD) is possible.

Scope of application: for pumping hot water in installations for heating water under high pressure and for use as a feed or circulation pump.

Circulation pump for hot water

A version for 60 Hz is possible.

Execution according to ATEX.

• Diameter: 40 - 350m
• Consumption [m3/h]: up to 2350
• Head [m] : up to 225
• Pressure [bar]: up to 110
• Temperature [°C] : up to +320
