Description:

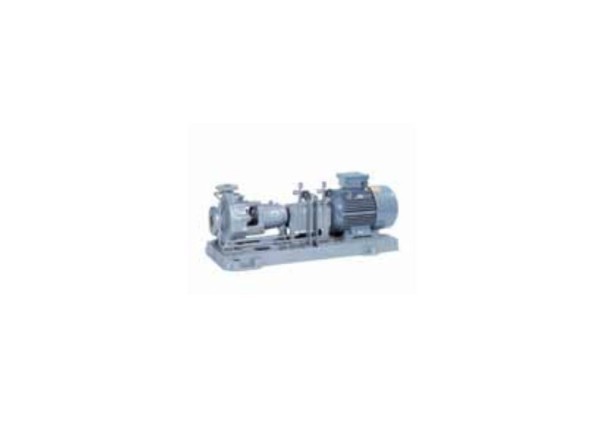

Horizontal centrifugal pump with a spiral body having a transverse connector, in a process design, with a radial impeller, single-flow, single-stage, according to EN 22 858 /ISO 2858 /ISO 5199. Certification according to the standard range by the technical supervision body TÜV in accordance with the Specifications for pressure vessels (TRD) is possible. Execution according to ATEX.
Scope of application: for pumping hot water and oil coolant in pipeline or tank systems, in particular for medium and large water heating installations, boilers with forced circulation, district heating, etc.
- Pressure DN: 150 - 400
- Consumption [m3/h]: up to 4150
- Head [m]: up to 185
- Pressure [bar]: up to 40
- Temperature [°C]: up to +400
- Network frequency: for 50 Hz
Features
Brand
KSB
Consumption, m3/h:
4000
Pressure, m:
200
