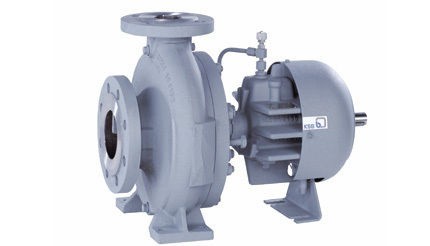

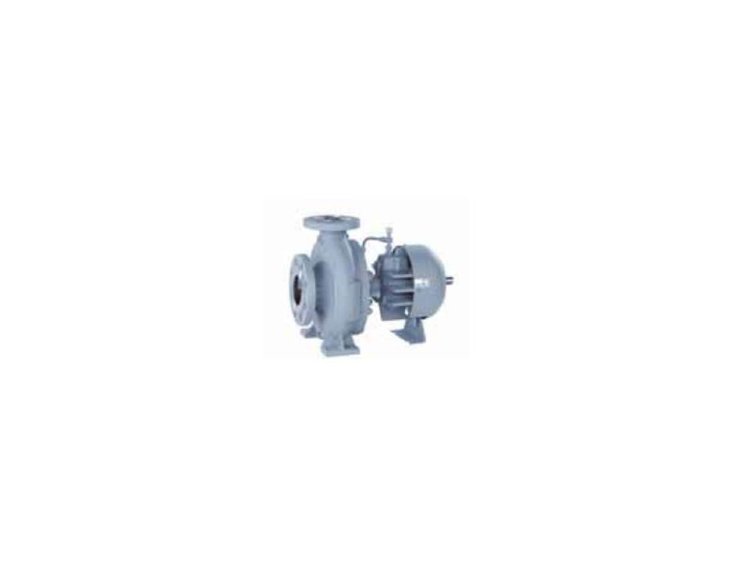

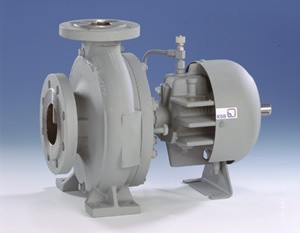

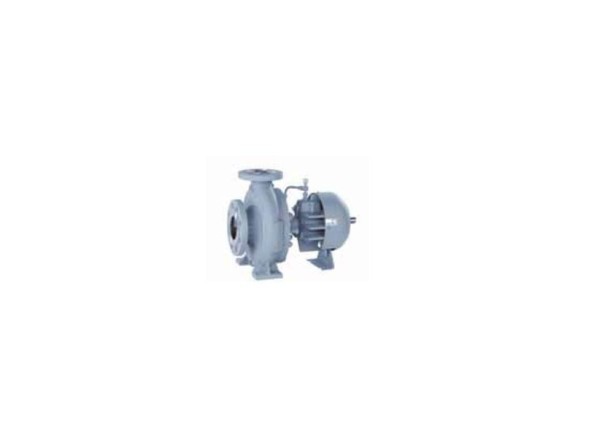

Circulation pump for hot water, oil coolant HPK-L

Horizontal centrifugal pump with a spiral body having a transverse connector, in a process design, with a thermal barrier and air cooling of the sealing chamber by an integrated fan, without external cooling, with a radial impeller, single-flow, single-stage, according to EN 22 858/ISO 2858/ISO 5199.

Execution according to ATEX.

Scope of application:

for pumping hot water and oil coolant in piping systems or reservoirs, in particular for medium and large water heating installations, boilers with forced circulation, district heating, etc.

• DN: 25 - 250
• Q [m3/h]: up to 1330
• H [m]: up to 155
• p [bar]: up to 40
• T [°C]: up to +240 /+350
• Specifications for 50 Hz
