HV 0,4
Vibration motors with standard design

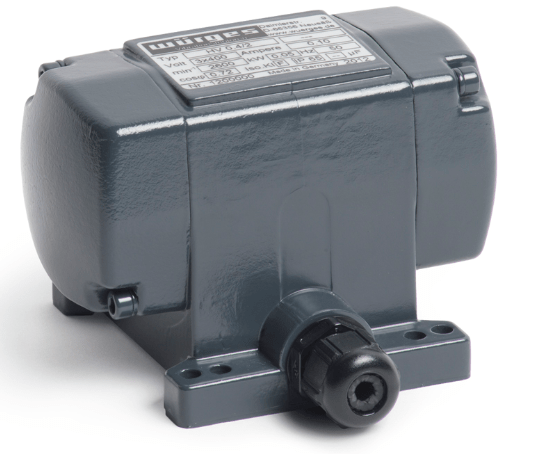

Three-phase vibration motor
The durable housing is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of centrifugal force adjustment. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 400 V·50 Hz or 230 V· 50 Hz. It is possible to supply motors designed for special voltage parameters.
The motor does not have the function of switching to another voltage. For operation from a 230 V AC network, a working capacitor with 2 UF can be ordered.
Degree of protection IP 65 · Heat resistance class F
All three-phase HV 0.4 motors are also available in ATEX II 3G/D T3 versions.
Overview of engine types
|
№ |
Type |
Synch. often. rotation. |
Centrifugal force |
Working moment |
Adjustment of the centrifugal force |
Standard voltage |
Rated current |
Power |
Choice |
|
|
|
rpm |
N |
cm kg |
Number of disks per store. |
50 Hz /V |
But |
P1, W |
|
|
1 |
HV 0,4/2 |
3000 |
200 |
0,4 |
4 levels |
3 ~ 400 |
0,10 |
50 |
|
|
2 |
HV 0,4/2 |
3000 |
200 |
0,4 |
4 levels |
3 ~ 230 |
0,17 |
50 |
|
|
3 |
HV 0,4/2-1 |
3000 |
450 |
0,9 |
Level 9 |
3 ~ 400 |
0,10 |
50 |
|
|
4 |
HV 0,4/2-1 |
3000 |
450 |
0,9 |
Level 9 |
3 ~ 230 |
0,17 |
50 |
|
Size Chart
|
Type |
Mounting dimensions1 |
|
Base dimensions (mm) |
|
Dimensions (mm) |
|
Weight |
|||||||
|
|
a |
b |
Шs |
|
c |
e |
f |
|
h |
g |
p |
k |
|
kg |
|
HV 0,4/2 |
60 |
85 |
6 |
|
12 |
90 |
100 |
|
54,5 |
67 |
88 |
132 |
|
1,9 |
|
|
78 |
83 |
6 |
|
|
|
|
|
|
|
|
|
|
|
|
HV 0,4/2-1 |
60 |
85 |
6 |
|
12 |
90 |
100 |
|
54,5 |
67 |
88 |
156 |
|
2,3 |
|
|
78 |
83 |
6 |
|||||||||||
