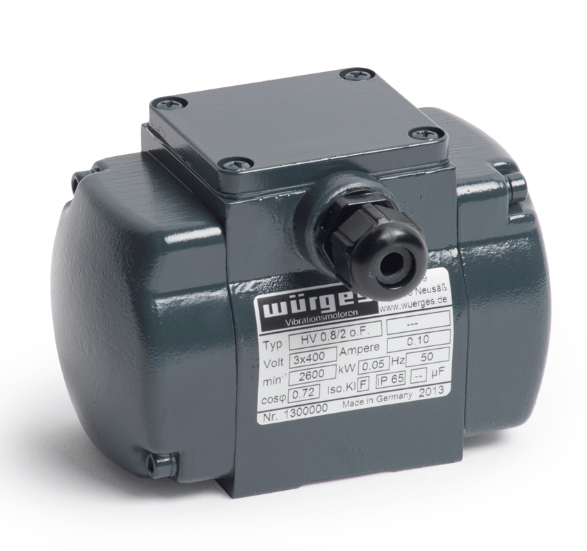

HV 0.8 without base
Three-phase vibration motor for particularly cramped installation conditions
Three-phase vibration motor
The device is designed for installation in cramped conditions, for example, for pair mounting on transport chutes. Fastening is carried out from below through threaded holes in the base.
The durable housing is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of centrifugal force adjustment. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 400 V·50 Hz or 230 V· 50 Hz. It is possible to supply motors designed for special voltage parameters.
The motor does not have the function of switching to another voltage. For operation from a 230 V AC network, a working capacitor with 2 UF can be ordered.
Degree of protection IP 65 Heat resistance class F
Engine types in the ��overview
|
№ |
Type |
Synch. often. rotation. |
Centrifugal force |
Working moment |
Adjustment of the centrifugal force |
Standard voltage |
Rated current |
Power |
Choice |
|
|
|
rpm |
N |
cm kg |
Number of disks per store. |
50 Hz /V |
But |
P1, W |
|
|
1 |
HV 0.8/2 without main |
3000 |
400 |
0,8 |
4 levels |
3 ~ 400 |
0,1 |
50 |
|
Size Chart
|
Type |
Mounting dimensions |
|
Base dimensions (mm) |
|
Dimensions (mm) |
|
Weight |
|||||||
|
|
a |
b |
Шs |
|
c |
e |
f |
|
h |
g |
p |
k |
|
kg |
|
HV 0.8/2 without main |
45 |
45 |
M6 |
|
10 |
70 |
72 |
|
42 |
80 |
97 |
138 |
|
2,2 |
