HV 12
Vibration motors with standard design

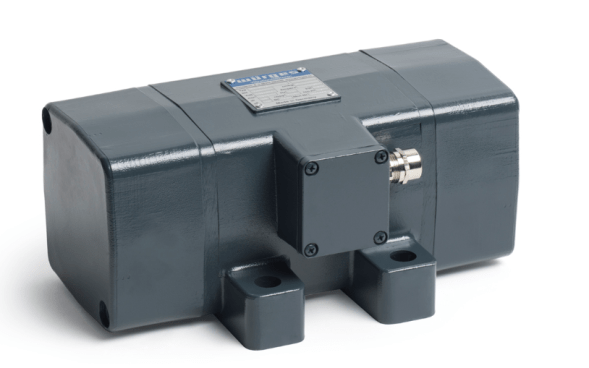

Three-phase vibration motors
The sturdy body is made of high-strength, improved aluminum, cast in coquille. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force using unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
1) These devices are also supplied with a degree of protection II 3G/D.
2) These devices are also available in a particularly narrow design.
In addition, there is an option for flange mounting.
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
|
|
1
|
HV 12/21-2
|
3000
|
6000
|
12
|
Level 8
|
3 ~ 230/400
|
2,16/1,25
|
650
|
|
|
2
|
HV 12/4-181-2
|
1500
|
2200
|
18
|
Level 12
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
3
|
HV 12/4-301-2
|
1500
|
3750
|
30
|
Level 20
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
4
|
HV 12/4-422
|
1500
|
5250
|
42
|
Level 15
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
5
|
HV 12/4-602
|
1500
|
7750
|
60
|
stepless 2
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
6
|
HV 12/6-42
|
1000
|
2230
|
42
|
Level 15
|
3 ~ 230/400
|
1,12/0,65
|
300
|
|
|
7
|
HV 12/6-60
|
1000
|
3440
|
60
|
stepless 2
|
3 ~ 230/400
|
1,12/0,65
|
300
|
|
|
8
|
HV 12/8-42
|
750
|
1310
|
42
|
Level 15
|
3 ~ 230/400
|
1,0/0,6
|
250
|
|
|
9
|
HV 12/8-60
|
750
|
1940
|
60
|
stepless 2
|
3 ~ 230/400
|
1,0/0,6
|
250
|
|
Size Chart
|
Type
|
Mounting dimensions
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
HV 12/2
|
100
|
180
|
18
|
|
40
|
140
|
215
|
|
70
|
175
|
138
|
303
|
|
15
|
|
HV 12/4-18
|
100
|
180
|
18
|
|
40
|
140
|
215
|
|
70
|
175
|
138
|
303
|
|
15,5
|
|
HV 12/4-30
|
100
|
180
|
18
|
|
40
|
140
|
215
|
|
70
|
175
|
138
|
350
|
|
18,8
|
|
HV 12/·-42
|
100
|
180
|
18
|
|
50
|
140
|
215
|
|
80
|
186
|
159
|
330
|
|
21
|
|
HV 12/·-60
|
100
|
180
|
18
|
|
50
|
140
|
215
|
|
80
|
186
|
159
|
387
|
|
29
|
