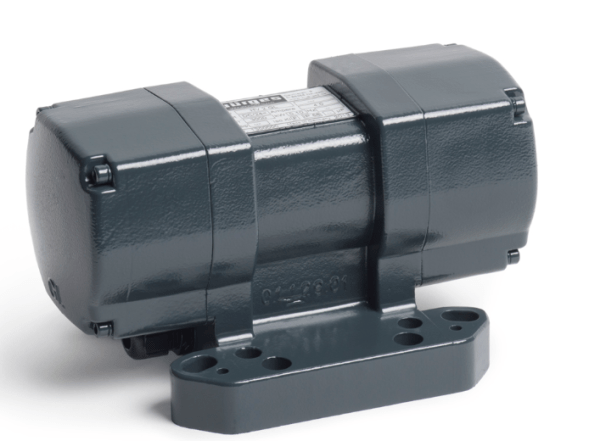

DC vibration motors
The durable housing is made of cast aluminum. There are several levels of adjustment of the centrifugal force by means of unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 12 /24 VDC. current
Degree of protection IP 66 · Heat resistance class F
Overview of engine types
|
№ |
Type |
Synch. often. rotation. |
Centrifugal force |
Working moment |
Adjustment of the centrifugal force |
Standard voltage |
Rated current |
Power |
Choice |
|
|
|
rpm |
N |
cm kg |
Number of disks per store. |
50 Hz /V |
But |
P1, W |
|
|
1 |
HV 2 GL-12 |
3000 |
1100 |
2,33 |
5 |
12= |
5,5 |
72 |
|
|
2 |
HV 2 GL-24 |
3000 |
1100 |
2,33 |
5 |
24= |
4 |
96 |
|
|
3 |
HV 2 GL-24 is used. |
3000 |
1980 |
4,16 |
9 |
24= |
4 |
96 |
|
Size Chart
|
Type |
Mounting dimensions1 |
|
Base dimensions (mm) |
|
Dimensions (mm) |
|
Weight |
|||||||
|
|
a |
b |
Шs |
|
c |
e |
f |
|
h |
g |
p |
k |
|
kg |
|
|
65 |
140 |
13 |
|
|
|
|
|
|
|
|
|
|
|
|
HV 2 GL |
80 |
110 |
11 |
|
|
|
|
|
|
|
|
225 |
|
4,8 |
|
|
115 |
135 |
11 |
|
25 |
157 |
162 |
|
80 |
96 |
128 |
|
|
|
|
HV 2 GL is used. |
135 |
115 |
11 |
|
|
|
|
|
|
|
|
251 |
|
5,4 |
