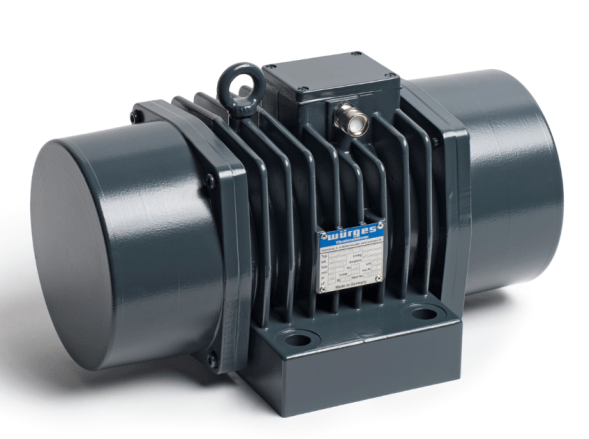

HV 55
Vibration motors with standard design
Three-phase vibration motors
The extremely durable housing is made of high-strength, improved cast aluminum. The bearings are lubricated with a special lubricant, which will ensure long-term operation of the device. The 2-pole vibrator has several levels of centrifugal force adjustment using unbalanced weights; other types have smooth adjustment. The vibrator can be used in continuous operation mode, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
|
|
1
|
HV 55/2
|
3000
|
25000
|
50
|
Level 12
|
3 ~ 230/400
|
6,6/3,8
|
2100
|
|
|
2
|
HV 55/4-120
|
1500
|
14500
|
115
|
smooth 2
|
3 ~ 230/400
|
4,7/2,7
|
1400
|
|
|
3
|
HV 55/4-150
|
1500
|
17800
|
144
|
smooth 2
|
3 ~ 230/400
|
4,7/2,7
|
1400
|
|
|
4
|
HV 55/6-120
|
1000
|
6400
|
115
|
smooth 2
|
3 ~ 230/400
|
3,4/2,0
|
850
|
|
|
5
|
HV 55/6-150
|
1000
|
7920
|
144
|
smooth 2
|
3 ~ 230/400
|
3,4/2,0
|
850
|
|
|
6
|
HV 55/8-120
|
750
|
3620
|
115
|
smooth 2
|
3 ~ 230/400
|
2,1/1,2
|
500
|
|
|
7
|
HV 55/8-150
|
750
|
4400
|
144
|
smooth 2
|
3 ~ 230/400
|
2,1/1,2
|
500
|
|
Size Chart
|
Type
|
Mounting dimensions
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
HV 55/2
|
120
|
250
|
22
|
|
55
|
170
|
300
|
|
110
|
205
|
240
|
370
|
|
43
|
|
HV 55/·-120
|
120
|
250
|
22
|
|
55
|
170
|
300
|
|
110
|
205
|
240
|
430
|
|
54
|
|
HV 55/·-150
|
120
|
250
|
22
|
|
55
|
170
|
300
|
|
110
|
205
|
240
|
475
|
|
69
|
