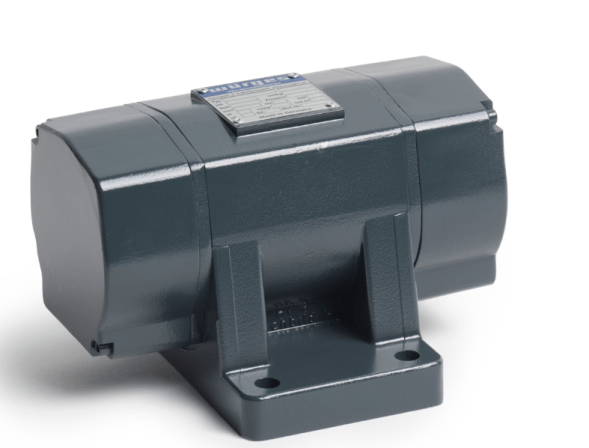

HV 6 H
Vibration motors with standard design
Three-phase vibration motors
The scheme is different. holes H 80 x 175
The durable housing is made of cast aluminum. The lubrication of specially selected bearings 6303 2Z C4 is enough for the entire service life of the engine. There are several levels of adjustment of the centrifugal force by means of unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 · Heat resistance class F
All three-phase HV 6 motors are also available in ATEX II 3G/D T3 versions.
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
|
|
1
|
HV 6/2H
|
3000
|
3050
|
6,1
|
8
|
3 ~ 230/400
|
0,99/0,57
|
300
|
|
|
2
|
HV 6/4-18H
|
1500
|
2200
|
17,8
|
23
|
3 ~ 230/400
|
0,75/0,43
|
190
|
|
Size Chart
|
Type
|
Mounting dimensions
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
HV 6/2H
|
80
|
175
|
13
|
|
25
|
115
|
205
|
|
86
|
114
|
144
|
230
|
|
7,5
|
|
HV 6/4-18H
|
80
|
175
|
13
|
|
25
|
115
|
205
|
|
86
|
114
|
144
|
320
|
|
11,0
|
