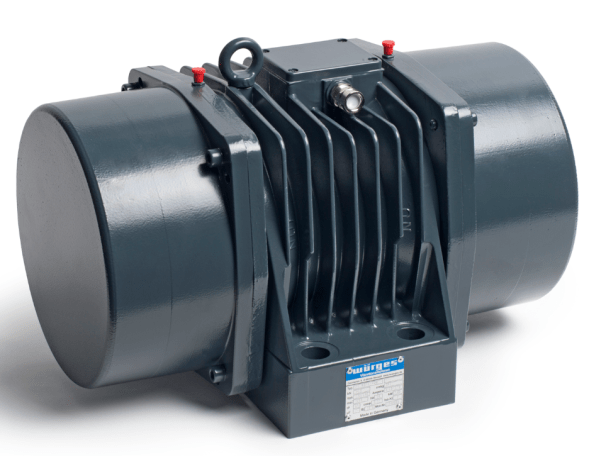

HV 85
Vibration motors with standard design
Three-phase vibration motors
The extremely durable housing is made of high-strength, improved cast aluminum. Bearings of a special design are lubricated with a special lubricant, which will ensure long-term operation of the device. The adjustment of the centrifugal force is smooth. The vibrator can be used in continuous operation mode, taking into account the permissible current consumption.
* Exception: HV 85/2-120 with 40% cont. inclusions.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
|
|
1
|
HV 85/2
|
3000
|
43000
|
86
|
smooth 2
|
3 ~ 230/400
|
12,0/6,9
|
4200
|
|
|
2
|
HV 85/2-120*
|
3000
|
61000
|
123
|
smooth 2
|
3 ~ 230/400
|
12,0/6,9
|
4200
|
|
|
3
|
HV 85/4-400
|
1500
|
50000
|
397
|
smooth 2
|
3 ~ 230/400
|
6,4/3,7
|
2000
|
|
|
4
|
HV 85/6-400
|
1000
|
22000
|
397
|
smooth 2
|
3 ~ 230/400
|
5,5/3,2
|
1500
|
|
|
5
|
HV 85/6-600
|
1000
|
32280
|
587
|
smooth 2
|
3 ~ 230/400
|
5,5/3,2
|
1500
|
|
|
6
|
HV 85/8-400
|
750
|
12500
|
397
|
smooth 2
|
3 ~ 230/400
|
3,8/2,2
|
950
|
|
Size Chart
|
Type
|
Mounting dimensions
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
HV 85/2
|
100
|
300
|
27
|
|
70
|
175
|
350
|
|
150
|
280
|
300
|
385
|
|
75
|
|
HV 85/2-120
|
100
|
300
|
27
|
|
70
|
175
|
350
|
|
150
|
280
|
300
|
385
|
|
80
|
|
HV 85/·-400
|
100
|
300
|
27
|
|
70
|
175
|
350
|
|
150
|
280
|
300
|
485
|
|
100
|
|
HV 85/6-600
|
100
|
300
|
27
|
|
70
|
175
|
350
|
|
150
|
280
|
300
|
612
|
|
130
|
