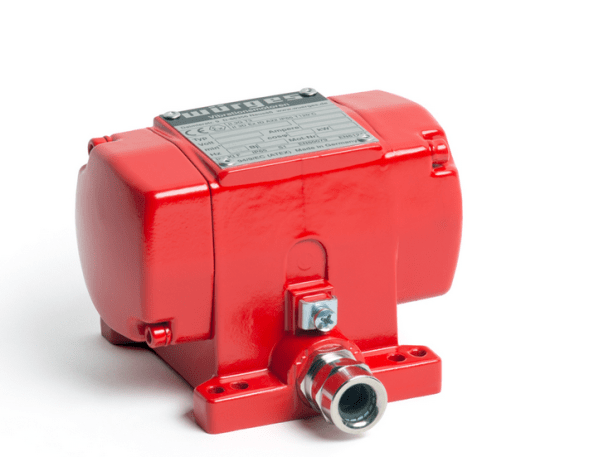

HVE 0,4/2 Вибрационный двигатель Würges 3000об/мин 0,2кН 3x400V, 50 Hz, взрывозащ. II 3 D Ex tD A22 IP65 T120°C
Vibration motors in explosion-proof design with standard design
Three-phase vibration motor in explosion-proof design
The durable housing is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of centrifugal force adjustment. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption. The set includes a 2-meter connection cable of the Cflex FD is durable. +C 4G 1.5, W 13 mm
Standard voltage: 400 V·50 Hz or 230 V· 50 Hz. It is possible to supply motors designed for special voltage parameters.
The motor does not have the function of switching to another voltage.
II 3 G T3 · II 3 D Ex tD A22 IP65 T120°C · Degree of protection IP 65 · Heat resistance class F
suitable for use in an area with a gas content of 2 and in an area with a dust content of 22
Overview of engine types
|
№ |
Type |
Synch. often. rotation. |
Centrifugal force |
Working moment |
Adjustment of the centrifugal force |
Standard voltage |
Rated current |
Power |
Temperature |
|
rpm |
N |
cm kg |
Number of disks per store. |
50 Hz /V |
But |
P1, W |
°C |
||
|
1 |
Ratio 0,4 /2 |
3000 |
200 |
0,4 |
4 levels |
3 ~ 400 |
0,1 |
50 |
120 |
|
2 |
Ratio 0,4 /2 |
3000 |
200 |
0,4 |
4 levels |
3 ~ 230 |
0,17 |
50 |
120 |
|
3 |
HVe 0,4/2-1 |
3000 |
450 |
0,9 |
Level 9 |
3 ~ 400 |
0,10 |
50 |
120 |
|
4 |
HVe 0,4/2-1 |
3000 |
450 |
0,9 |
Level 9 |
3 ~ 400 |
0,17 |
50 |
120 |
Size Chart
|
Type |
Mounting dimensions1 |
Base dimensions (mm) |
Dimensions (mm) |
Weight |
||||||||||
|
a |
b |
Шs |
c |
e |
f |
h |
g |
p |
k |
kg |
||||
|
Ratio 0,4 /2 |
60 |
85 |
6 |
12 |
90 |
100 |
54,5 |
67 |
88 |
132 |
1,9 |
|||
|
78 |
83 |
6 |
||||||||||||
|
HVe 0,4/2-1 |
60 |
85 |
6 |
12 |
90 |
100 |
54,5 |
67 |
88 |
156 |
2,3 |
|||
|
78 |
83 |
6 |
|
|||||||||||
