HVE 2

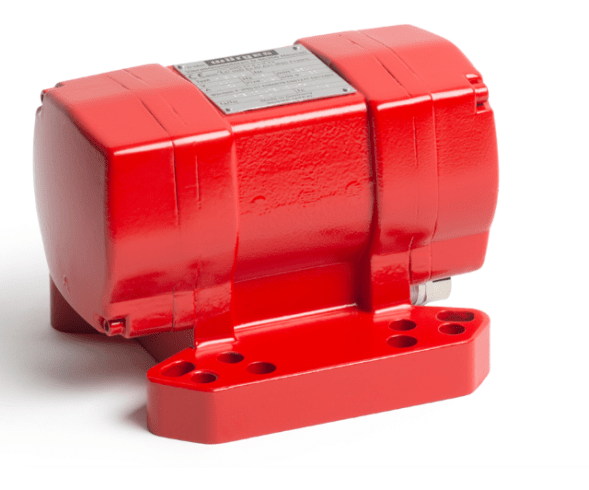

Vibration motors in explosion-proof design with standard design
Three-phase vibration motors in explosion-proof design
Hole diagram 65 x 140
The durable body is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force using unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
The kit includes a 2-meter connection cable of the Cflex FD is durable. +C 4G 1.5, W 13 mm.
Standard voltage: 400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters. The devices do not have the function of switching to another voltage.
II 2 G Ex e c II T3 · II 2 D Ex tD A21 IP65 T120°C · Степень защиты IP 65 · Класс нагревостойкости F,
It is suitable for use in areas with a gas content of 1 and 2, as well as in areas with a dust content of 21 and 22.
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Temperature
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
°C
|
|
|
1
|
How many 2/2
|
3000
|
880
|
1,85
|
4 levels
|
3 ~ 400
|
0,34
|
200
|
120
|
|
|
2
|
How many 2/2-2
|
3000
|
1320
|
2,8
|
Level 6
|
3 ~ 400
|
0,34
|
200
|
120
|
|
|
3
|
How many 2/2-4
|
3000
|
1760
|
3,7
|
Level 8
|
3 ~ 400
|
0,34
|
200
|
120
|
|
|
4
|
How many 2/2-6
|
3000
|
2860
|
6
|
Level 13
|
3 ~ 400
|
0,34
|
200
|
120
|
|
|
5
|
How many 2/4
|
1500
|
220
|
1,85
|
4 levels
|
3 ~ 400
|
0,29
|
120
|
120
|
|
|
6
|
How many 2/4-2
|
1500
|
330
|
2,8
|
Level 6
|
3 ~ 400
|
0,29
|
120
|
120
|
|
|
7
|
How many 2/4-4
|
1500
|
440
|
3,7
|
Level 8
|
3 ~ 400
|
0,29
|
120
|
120
|
|
|
8
|
How many 2/4-6
|
1500
|
715
|
6
|
Level 13
|
3 ~ 400
|
0,29
|
120
|
120
|
|
|
9
|
How many 2/4-9
|
1500
|
1100
|
9
|
Level 20
|
3 ~ 400
|
0,29
|
120
|
120
|
|
Size Chart
|
Type
|
Mounting dimensions1
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
HV 2/·
|
65
|
140
|
13
|
|
25
|
157
|
162
|
|
80
|
96
|
128
|
189
|
|
5,6
|
|
HV 2/·-2
|
80
|
110
|
11
|
|
25
|
157
|
162
|
|
80
|
96
|
128
|
201
|
|
5,9
|
|
HV 2/·-4
|
115
|
135
|
11
|
|
25
|
157
|
162
|
|
80
|
96
|
128
|
215
|
|
6,4
|
|
HV 2/·-6
|
135
|
115
|
11
|
|
25
|
157
|
162
|
|
80
|
96
|
128
|
250
|
|
7,1
|
|
HV 2/4-9
|
124
|
110
|
11
|
|
25
|
157
|
162
|
|
80
|
96
|
128
|
283
|
|
8,1
|
