Преобразователь температуры iTEMP TMT162

Information about the iTEMP TMT162 temperature converter

Unsurpassed reliability, accuracy and long-term stability in critical processes; Converting the signal from resistance thermometers and thermocouples into a digital signal using the 4/20ma HART, FOUNDATION Fieldbus or PROFIBUS PA protocol.

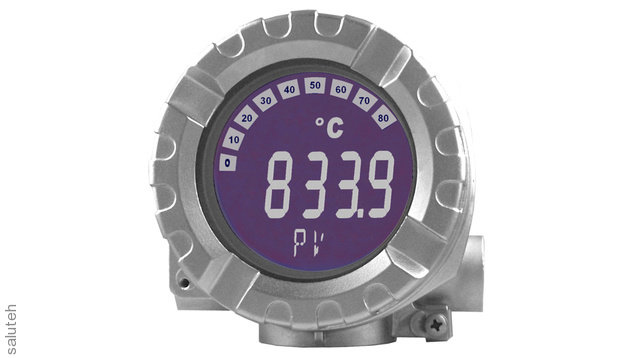

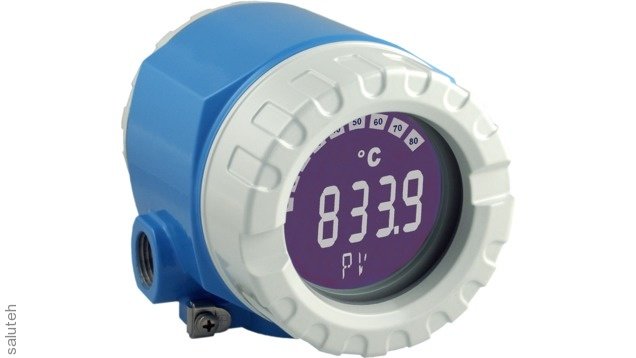

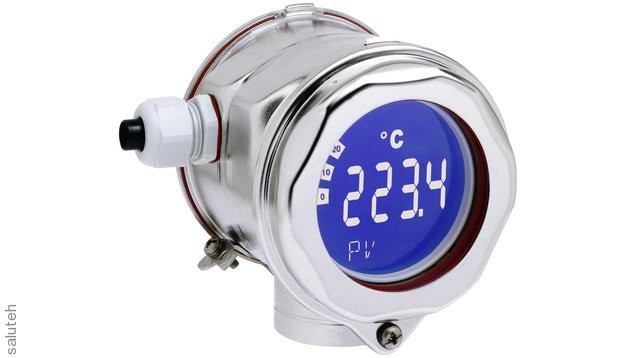

Additional visualization using the LCD display. The reliable field housing provides the possibility of operation even in the most severe industrial conditions, and can also optionally be used in hygienic processes.

Specifications:

• The principle of measurement    Thermistor
• Entrance    2 TS, thermocouple, Ohms, mV
• Output signals    4...20 mA HART
• FOUNDATION Fieldbus H1
• PROFIBUS PA
• Supply voltage    HART:
• 10,5...40 Per post. current
• Ex ia: 10,5...30 In the post. current
• FOUNDATION Fieldbus:
• 9...32 In the post. current
• Ex ia: 10,5...24 In the post. current
• PROFIBUS PA:
• 9...32 In the post. current
