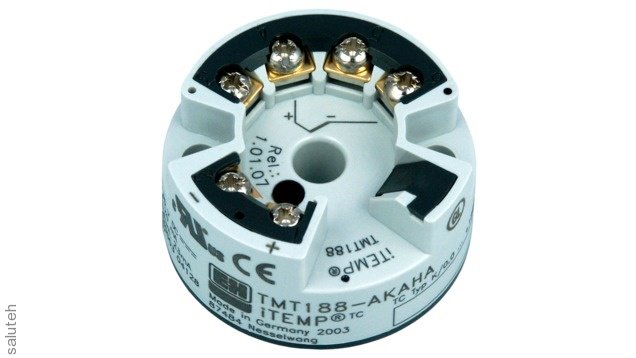

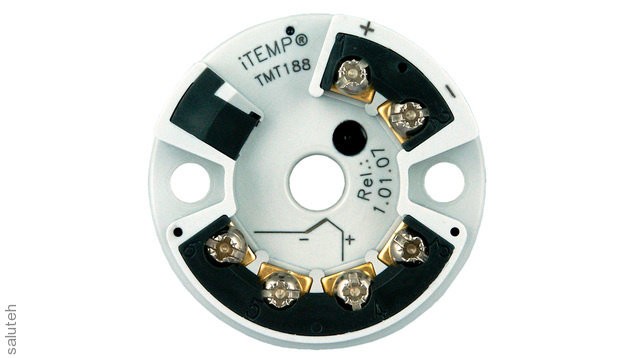

Преобразователь температуры iTEMP TMT188

Information about the iTEMP TMT188 temperature converter

High accuracy and reliability for use at critical measuring points. Compliance with NAMUR NE21, NE43 recommendations. The possibility of use in hazardous areas due to the Ex ia design.

Specifications:

• Principle of measurement    Embedded converter
• Entrance    1 x Thermocouple
• Output signals    1 x Analog 4...20 mA
• Supply voltage    8...35 V DC (standard version)
• 8...30 V DC (explosion-proof version)
• Mounting    Form B Connector
• Error rate    (Type K) <= 0,5 K
• Galvanic isolation    Yes
• Explosion protection    UL rec. Comp
• CSA GP
• ATEX Ex ia
• ATEX II3D
• ATEX nA
• FM USA IS
• FM USA NI
• CSA IS
• CSA NI
• UL Ex IS
• UL E
