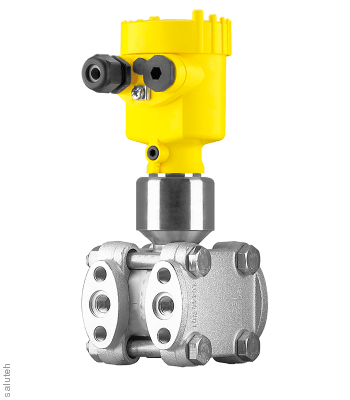

The VEGADIF 65 differential pressure transducer is designed for various measuring tasks. For example, in combination with pressure sensors, the device is used to measure the flow rate of gases, vapors and liquids. The device is also suitable for measuring the level of liquids in pressure vessels and for measuring pressure in order to monitor the operation of filters and pumps.
Features
- Very good reproducibility and long-term stability
- Measurement error < 0,075 %
- Various insulating diaphragms
- Highly resistant membrane materials
- The temperature of the measured medium with an insulating diaphragm is up to +400 °C
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
No reviews yet — yours could be the first.
All reviews 0
Список отзывов пуст
| Joining: | ¼-18 NPT, RC ¼ | |
| Measuring range: | from -10 ... +10 mbar to -40 ... +40 bar | |
| Overload: | up to 420 bar | |
| Ambient temperature: | -40 ... +120 °C |
