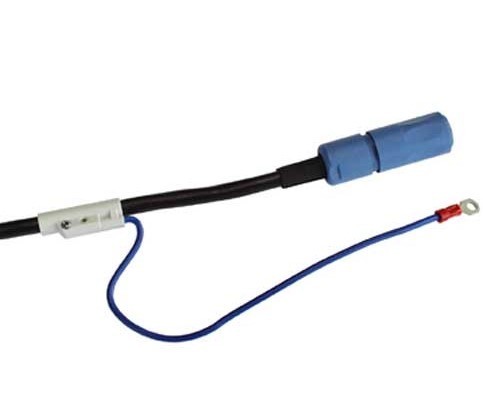

Measuring cable CPK9-NAA1A

• The principle of measurement

ORP electrode

• Application

Special high resistance cable for glass pH/ORP electrodes.

• Mounting

For electrodes with a TOP68 connector (ESA/ESB/ESS/HDA).

• Specifications

- for pH/ORP electrodes with (and without) an integrated temperature sensor - black: for general industrial applications, blue: for explosive applications.

• Measuring range

Insulation resistance:>100 teraohms/m

Resistivity: <100 пФ/м

• Construction

For standard and high temperature applications. For electrodes with a TOP68 connector.

• Material

Cable sheath:
Standard version: PVC

High temperature performance:
copper, with a gold-plated tip.

• Overall dimensions

Diameter: 7.2mm

• Operating temperature

Standard version: -25°C...80°C (-9°F...176°F)
High temperature version: 0°C...130°C (32°F...266°F)

• Temperature sensor

For electrodes with (and without) an integrated temperature sensor

• Explosion protection certificates

Applicable (blue color)

• Degree of protection

IP68
