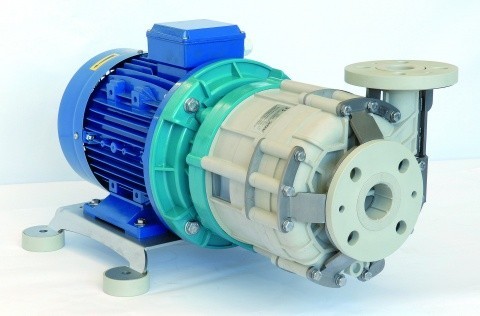

TMR20 Argal TMR20.36 Chemical Pump-N-WR-V-R1-B-EN3-5.5kW

TMR 20 Химический насос Argal TMR 20.36 N WR V R1 B EN3 kW 5,5

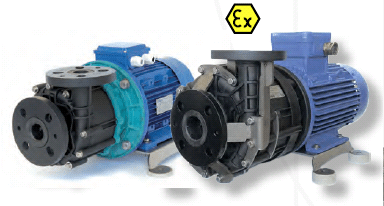

TMR Series

The magnetically coupled pump has a patented "two-way axial self-centering" technology, which allows the “R” design to work temporarily on dry. The combination of adequate materials of the impeller guide system with a certain magnetic field completely eliminates all axial friction that causes breakdowns for operation in the absence of liquid. You can install the motor without disassembling the pump.

• Engine power: 0.55-15 kW
• Body material: PP+f.Vetro - E-CTFE+f.Carb.

TMR 20.36 N WR V R1 B EN3 kW 5,5

• Manufacturer – ARGAL S.r.l. (Italy)
• The flow part:
• Body material - WR - GFR-PP - 30% glass fiber reinforced polypropylene,
• Impeller Material - WR - GFR-PP,
• O-ring material - V - FKM - Fluorine rubber O-ring,
• The impeller guide system - R1 - Al2O3/C-G - high density carbon fiber - can work for a short time without liquid on dry, without damage and wear.

Specifications:

• Capacity max. – 40 m3/h
• Head max. - 40 m
• Viscosity max. – 30/100 cSt
• Density max. – 1.1 kg/dm3
• Solid particles max. – clean media
• The temperature of the pumped liquid is from 0 to +80 °C
• Ambient temperature – from 0 to +40 °C

Hydraulic connection:

• The diameter of the input connection is BSP thread 2"
• The diameter of the output connection is BSP thread 1 ½"

Engine: SMEM brand (Italy). Standard – IEC, Degree of protection IP 55, class F, 3 phase, 2900 rpm, Power – N - 5.5 kW, Voltage – 230/400 V, Frequency - 50 Hz.
