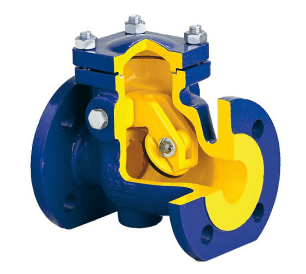

Rotary check valve ZETKAMA 302A-050-C-01, DN050, PN16, cast iron body GJL-250 (GG25), F/F

The rotary flanged check valve V302 can be installed both vertically and horizontally. The main requirement is the coincidence of the flow and the arrow on the valve body. The valve has a metal-on-metal saddle seal. On request, it is possible to manufacture this model without a spring.

The valve type is rotary.

The valves do not require maintenance. Periodic visual monitoring of the valve operation for leaks is sufficient.

Valve diameter: from DN40 to DN300
Working pressure: PN16

Materials:
Body material - cast iron
The material of the locking device is cast iron
Seal material - metal/metal

The maximum temperature is +300°C
Connection type - flange/flange
