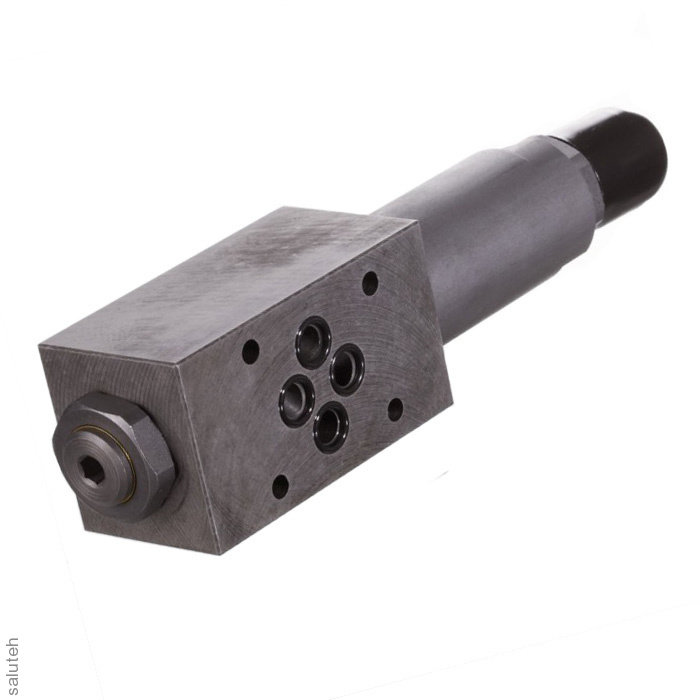

Atos HS-011/210 Sequence Valve

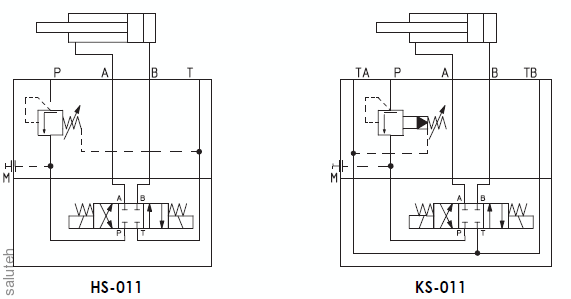

HS - sequence valves, direct acting spool type (3).
KS - two-stage (1) (2) sequence valves, spool type (3).

Pressure control is carried out by loosening the lock nut (4) and turning the adjusting screw (conventional model).
The version with a handle (5) (optional) is available on request. Clockwise rotation increases the preset pressure.

HS-011=ISO 4401 size 06: flow rate up to 40 l/min.
KS-011=ISO 4401 size 10: flow rate up to 80 l/min.

The HS, KS modular hydraulic valves are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic liquid having similar lubricating characteristics.

Mounting surface:
ISO 4401 size 06, 10

Maximum pressure:
350 bar (HS)
315 bar (KS)

Max. flow rate l/min 40
Pressure range 50-210
