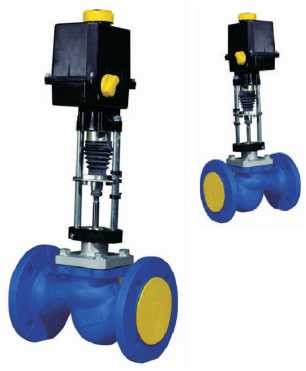

Information about the shut-off control valve with electric drive KSPR f/f 1-80-63-1.1200-SCH-1,6-1-150- Y (Regada), MF, PN16, Tmax=+150°C, Series 100
Shut-off and control valve KPSR series 100 (analog 25h945p) single-seat flanged with electric actuator (ZIM) PN 1.6 MPa
Appointment
The valve is designed for installation in heating and water supply systems for cold and hot water or a 30% aqueous solution of ethylene glycol with a temperature of no more than 150 ° C and a pressure of no more than 1.6 MPa.
Materials used
|
Detail |
Material |
|
Housing, roof |
Cast iron SCH 20 |
|
Plunger, Saddle, stem |
Steel 20X13 |
|
Seal in the gate |
Metal elastomer |
|
Stem seal |
Fluoroplast |
Technical specifications
|
Name of the parameter |
Meaning |
|||||||||||
|
Nominal diameter DN |
15 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
Nominal pressure PN, MPa, no more |
1,6 |
|||||||||||
|
Working environment temperature, aboutWith |
-15_ + 150 |
|||||||||||
|
Type of climatic design according to GOST 15150 |
Y1 |
|||||||||||
|
Ambient temperature, aboutWith |
-15._ +50 |
|||||||||||
|
Working environment |
Water, steam, air and other liquid and gaseous media neutral to the materials of the parts in contact with the medium |
|||||||||||
|
Throughput characteristics |
linear |
|||||||||||
|
Conditional throughput, Kvy, m3/h |
0,16 0,25 0,4 0,63 1,0 1,6 2,5 3,2 4,0 |
1,6 2,5 4,0 6,3 10 |
6,3 10 16 |
10 16 25 |
10 16 25 32 40 |
25 40 63 |
40 63 100 |
63 100 160 |
100 125 250 |
160 250 360 |
250 360 450 630 |
630 800 1000 |
|
The sealing class of the gate |
And according to GOST 9544-2005 |
|||||||||||
|
Stroke of the rod, mm, ± 5% |
10 |
20 |
22 |
25 |
32 |
40 |
50 |
80 |
||||
|
Connecting dimensions and dimensions of sealing surfaces |
Flanged with connection dimensions according to GOST 12815-80 |
|||||||||||
|
Electric drive "Regada" |
ST MINI |
ST 0 |
ST 01 |
ST 1 |
||||||||
|
The weight of the valve with the actuator, kg, no more |
6,5 |
8 |
8,5 |
13 |
17 |
25 |
33 |
40 |
53 |
73 |
140 |
210 |
Permissible pressure drop
|
|
Drive |
|||
|
DN |
ST Mini |
ST 0 |
ST 01 |
ST 1 |
|
|
1,1 kH |
2,9 kH |
3,2 kH |
5,8 kH |
|
|
2.75 W |
2.75 W |
15 Watts |
15 Watts |
|
15 |
1,6 |
|
|
|
|
25 |
|
|
|
|
|
32 |
1 |
|
|
|
|
40 |
0,65 |
|
|
|
|
50 |
0,4 |
|
|
|
|
65 |
|
1,6 |
|
|
|
80 |
|
|
|
|
|
100 |
|
|
|
|
|
125 |
|
|
1,6 |
|
|
150 |
|
|
|
|
|
200 |
|
|
|
1,6 |
|
250 |
|
|
|
|
Overall dimensions
|
ST Mini Drive |
Nominal diameter DN |
||||
|
15 |
25 |
32 |
40 |
50 |
|
|
L1, mm |
130 |
160 |
180 |
200 |
230 |
|
H1, mm, no more |
137 |
160 |
185 |
195 |
205 |
|
H2, mm, no more |
175 |
206 |
235 |
270 |
268 |
|
H3, mm, no more |
400 |
431 |
445 |
470 |
505 |
|
Weight, kg, no more |
6,5 |
8 |
8,5 |
13 |
15 |
|
ST drive |
Nominal diameter DN |
|||||||
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
L1, mm |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
|
H1, mm, no more |
193 |
240 |
249 |
270 |
290 |
310 |
340 |
650 |
|
H2, mm, no more |
257 |
330 |
342 |
367 |
420 |
500 |
520 |
850 |
|
H3, mm, no more |
482 |
624 |
640 |
660 |
710 |
1000 |
1020 |
1080 |
|
Weight, kg, no more |
17 |
25 |
33 |
40 |
53 |
73 |
140 |
210 |
