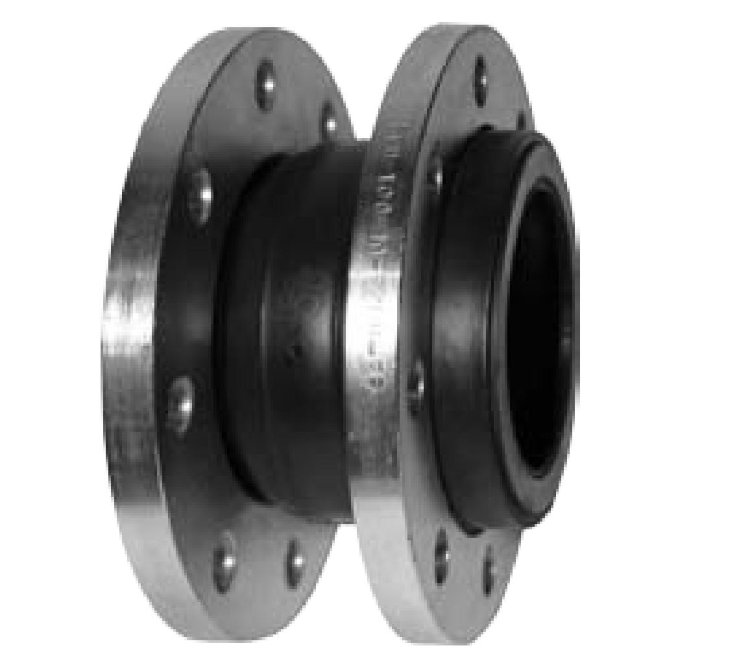

Rubber anti-vibration compensator PN16 EPDM Tmax=+110oC flanged
The anti-vibration compensator is designed to reduce noise, vibration, hydraulic shocks, to compensate for longitudinal, transverse displacements, thermal elongation of pipelines.
The flanged rubber compensator is designed for water supply systems, heat supply, and various technological equipment.
Maximum operating values: Temp. Min.: - 20 °C; temp. Max.: + 110 °C
|
Nominal |
L | ÖD | ØK | n-ØD |
32 95 140 100 4-18
40 95 150 110 4-18
50 105 165 125 4-18
65 115 185 145 4-18
80 130 200 160 8-18
100 135 220 180 8-18
125 165 250 210 8-18
150 180 285 240 8-22
200 205 340 295 8-22
250 240 395 350 12-22
300 260 445 400 12-22
350 255 505 460 16-22
400 255 565 515 16-26
450 255 615 565 20-26
500 255 670 620 20-26
600 255 780 725 20-30
Maintenance and repair.
It should be borne in mind that the service life of compensators is limited and depends on pressure, temperature, environmental conditions, ozone exposure, number of cycles, compatibility of materials, range of motion and proper fastening. Compensators are designed in such a way that they do not require periodic lubrication and maintenance. However, periodic inspections help extend the life of the equipment and reduce installation/removal problems.:
- check all fasteners and threaded connections for loosening and oxidation. In case of leakage, tighten as needed;
- if the leak has not been eliminated, check the contact points of the surfaces of the compensator and the pipeline, if necessary, replace the damaged parts;
- In case of excessive deformation or corrosion, the compensator should be completely replaced.
In case of damage to the rotator cuff, the compensator should be completely replaced.
