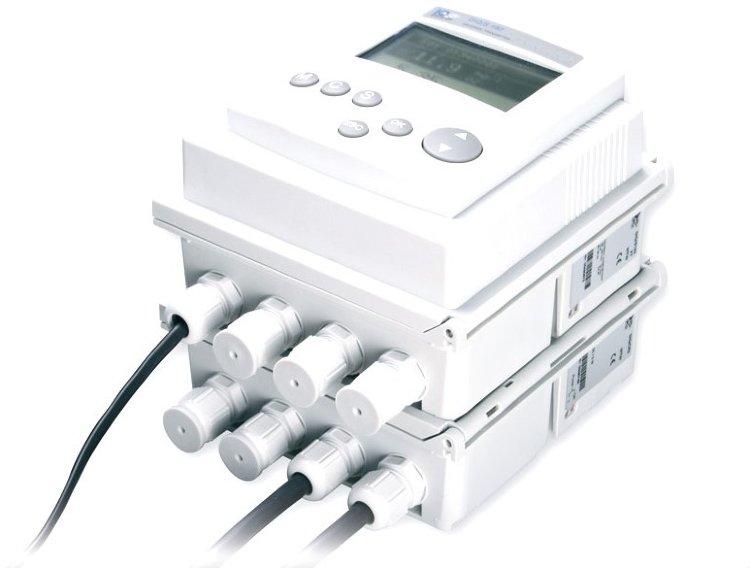

The ability to connect up to 4 digital sensors to a single controller for operation in a wastewater treatment system.
Any combination of IQ sensors. On-site measurement of pH, ORP, dissolved oxygen, conductivity, temperature, turbidity/suspended solids, ammonium, nitrates and organic carbon. Power supply in a wide range of ~100-240 V or 24 V DC voltage. PROFIBUS DP or MODBUS RTU digital outputs Up to 5 analog and up to 6 relay outputs.
The ability to connect up to 4 digital sensors to a single controller for operation in a wastewater treatment system.
Scope of application: Control of technological processes
specifications:
Display Graphic black and white display 72x40 mm with backlight, resolution 128x64 pixels.
Electrical connection
100-230 VAC (50/60 Hz), 24 V DC
Ambient temperature
Working: -20...+55 °C
Storage: -25...+65 °C
Housing material Polycarbonate with 20% fiberglass
Degree of protection IP 66 (NEMA 4X)
Dimensions (WxHxD) DIQ 182: 144x144x95
DIQ module: 95x95x58
Weight DIQ 182: 1 kg
DIQ/S 182 XT and DIQ/S 182 XT-4: 1.5 kg
