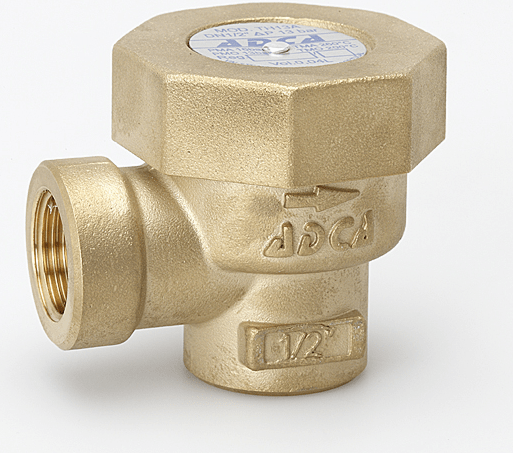

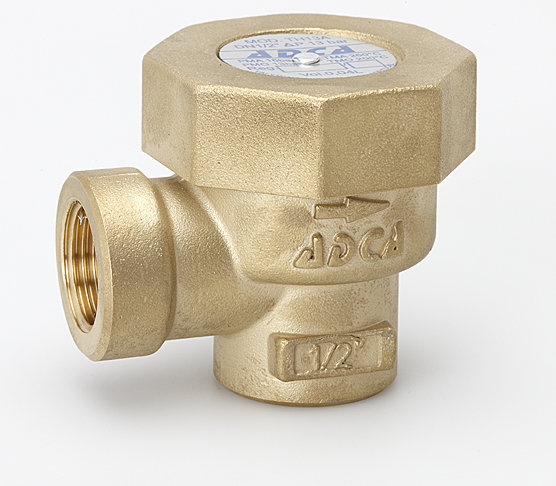

Thermostatic steam trap TH13A 1/2" brass dP=13 caps. angle PN16 internal thread

TH13A the condensate trap is thermostatic with the function of removing air from steam systems. Designed for use in systems such as digesters, sterilizers, etc. Due to its compact dimensions, it is mainly used as an air vent from steam systems.

Specifications:

• constant condensate drainage, condensate is discharged supercooled, depending on the type of capsule, by an amount from 5 °C to 30 °C.
• built-in filter
• The maximum allowable pressure is 16 bar
• The maximum permissible temperature is 260 °C
• The maximum working pressure is 13 bar
• The maximum operating temperature is 200 °C

Wednesday: saturated steam
