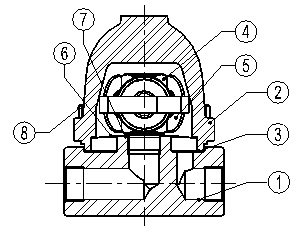

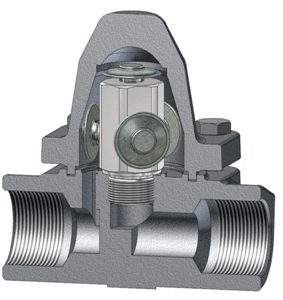

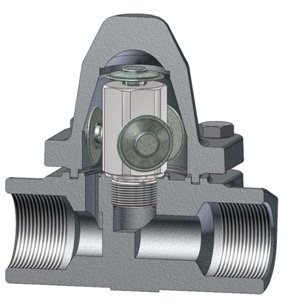

The condensate trap is thermostatic (with the function of removing air from steam. systems) type TH35/2, TH35/3, TH (1" TH35/2 r/r P250GH dP=22 2-capsule)

TH35/2, TH35/3, TH35/4 the condensate trap is thermostatic with the function of removing air from steam systems. Designed for use in systems such as digesters, sterilizers, etc.

TH36 the condensate trap is thermostatic with the function of removing air from steam systems. It is designed for use in systems such as digesters, sterilizers, and is used in the food and chemical industries in cases where increased throughput is required.

Specifications:
constant condensate drainage, condensate is discharged supercooled, depending on the type of capsule, by an amount from 5 °C to 30 °C.
It can be used on superheated steam
contains a built-in filter

Wednesday: saturated and re -
