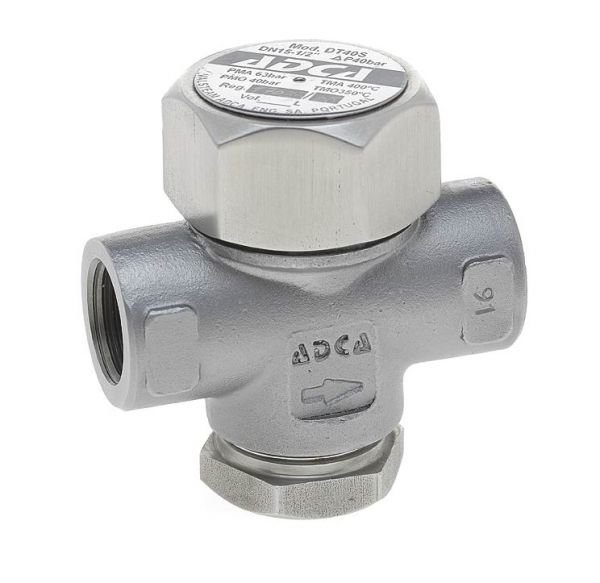

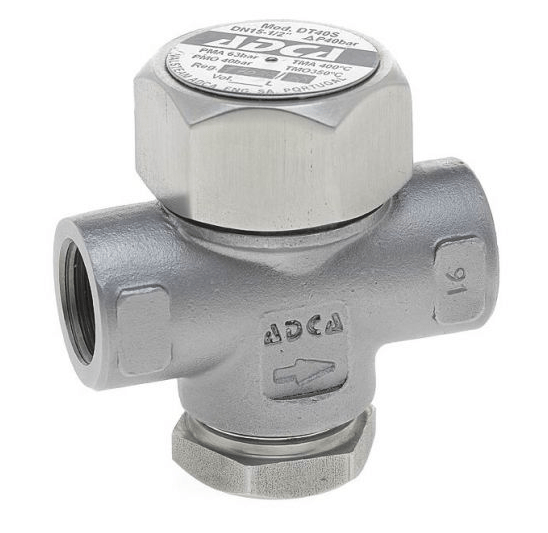

Thermodynamic condensate trap DT40S PN40 with filter, stainless steel. steel, thread (3/8" DT40S internalthread AISI 420 dP=40)

Thermodynamic steam trap DT40S It is mainly used in medium and high pressure systems. It is preferable for tracing satellite steam lines. The only movable part of the DT40S is the disc. It does not require configuration across the entire workload range. Installation is preferably on a horizontal pipeline. Installation in any position is allowed.

Specifications:

• discrete condensate drain
• it is not affected by water hammer and vibration
• does not require disassembly for maintenance
• Min. working pressure - 0.25 bar
• Max. back pressure - 80%
• The maximum allowable pressure is 63 bar
• The maximum permissible temperature is 400 °C
