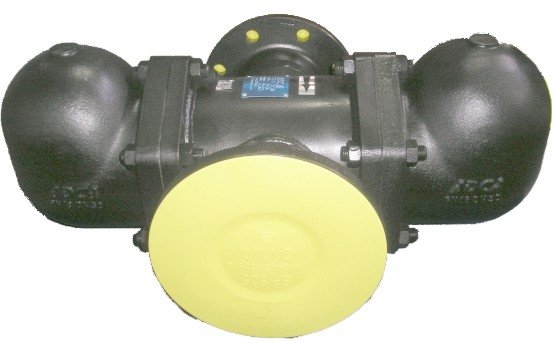

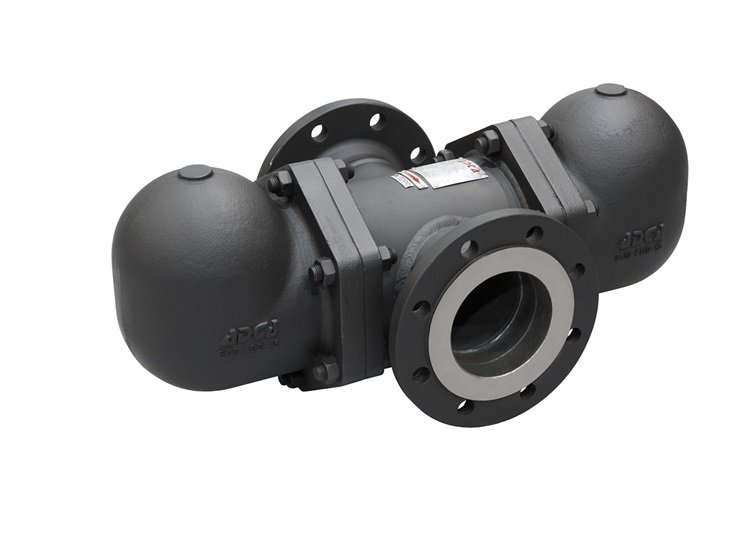

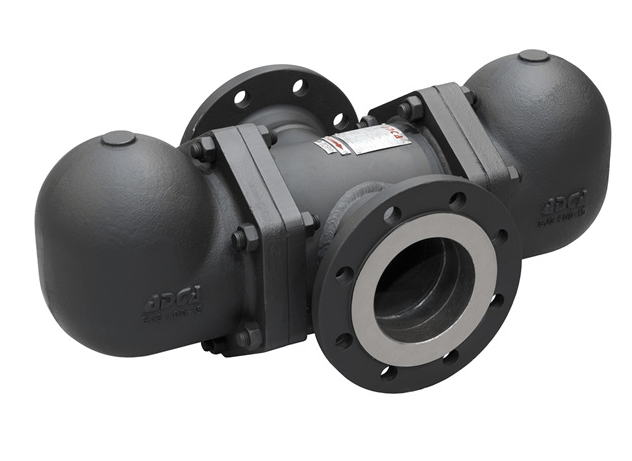

Double float steam trap FLT22G/TW PN16 high-strength cast iron (80 FLT22G/TW 4.5 f/f steel/GJS-400-15 dP=4.5)

FLT22G/TW - the float condensate trap (with a built-in bimetallic valve for the release of air and other non-condensable gases) is designed for low and high pressure condensate and is intended for installation on heat exchange equipment, as well as for condensate drainage.

A typical application for this type of condensate drains is installation on heat exchange equipment, drying cylinders, steam jackets and other equipment. Connection - internal thread or flanges, in horizontal or vertical position.

BASIC PROPERTIES

• Constant condensate drainage.
• Condensate is discharged at saturation temperature.
• It is not affected by sudden changes in loads and pressure drop.

APPLICATION: Saturated and superheated steam

execution: F
