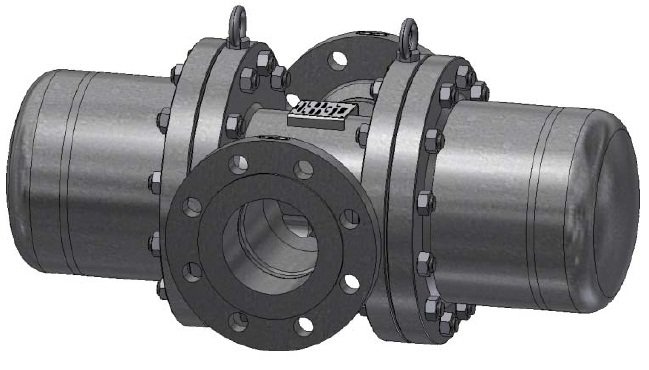

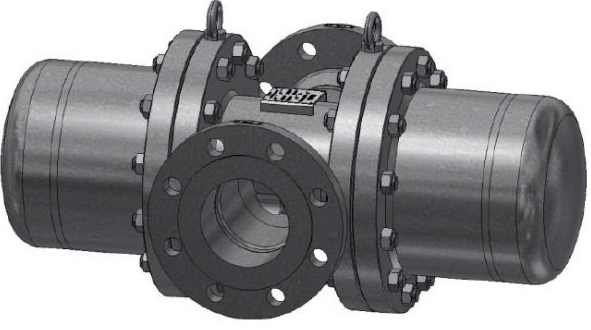

Double float steam trap FLT22SS/TW PN25 stainless steel
FLT22SS/TW - condensate trap (with built-in bimetallic valve for the release of air and other non-condensable gases) is designed for low and high pressure condensate and is intended for installation on heat exchange equipment, as well as for condensate drainage.
A typical application for this type of condensate drains is installation on heat exchange equipment, drying cylinders, steam jackets and other equipment.
Connection: internal thread or flanges, in horizontal or vertical position.
Specifications:
- Constant condensate drainage. Condensate is discharged at saturation temperature.
- It is not affected by sudden changes in loads and pressure drop.
- The default setting is horizontal – flow from right to left FLT22 (R-L)
Delivery is possible under the order:
- installation on a horizontal pipeline, flow direction from left to right (L-R)
- installation on a vertical pipeline, flow direction from top to bottom (V)
- Перепад давления: FLT22SS/TW -4,5: 4,5 бар, FLTSS22/TW -10: 10 бар, FLT22SS/TW -14: 14 бар
Medium: saturated and superheated steam
- Nominal diameter: DN80, DN100;
- Nominal pressure:PN32;
- Operating temperature: +250C;
- Types of connection: flanges according to DIN.;
Specification of materials
- 1. Stainless steel housing. steel
- 2. Stainless steel cover. steel
- 3. Asbestos-Free Seal
- 4. Stainless steel AISI 410 body seat
- 5. Stainless steel AISI 410 valve
- 6. Lever Stainless steel AISI 304
- 7. Stainless steel AISI 304 float
- 8. Air valve Stainless steel. steel
- 9. Stainless steel bolt. steel
Existing types:
With maximum pressure drop
- up to 4.5 bar - FLT 22 SS/TW-4.5
- up to 10 bar - FLT 22 SS/TW-10
- up to 14 bar - FLT 22 SS/TW-14
- up to 21 bar - FLT 22 SS/TW-21
Possible versions:
- e with SLR (with built-in needle
- a valve for releasing steam plugs)
Installation is horizontal only, recommended margin ratio: continuous operation 1.2 - 1.5; periodic operation 2
Order example: FLT22SS/TW-10-100 F/F (diameter 100 mm, flange connection, max dP-10 bar).
